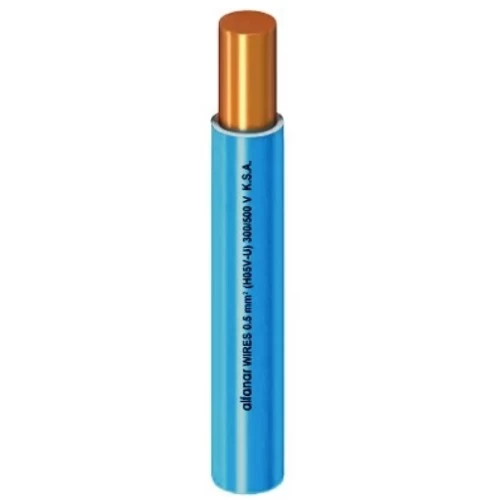

0.75mm Solid Copper Wire 300/500V, PVC Insulation | Alfanar

0.75mm Solid Copper Wire 300/500V, PVC Insulation | Alfanar

(912 Product Views)

YouMats

0.75mm Solid Copper Wire Size, PVC Insulation. This wire is known for its economical cost and reliable performance, with PVC insulation preventing electric current leakage and providing protection from moisture and corrosion. Blue color. Ideal for fixed internal installations. Produced by Alfanar.

in stock
 Call Now

Product description

Solid copper electrical wire (CU/PVC) manufactured by Alfanar, in accordance with the latest British Standards (BS) and International Electrotechnical Commission (IEC) standards. Insulated with polyvinyl chloride (PVC), they are distinguished by their economical cost, reliable performance, and durability. The insulation forms an excellent layer around the conductor to prevent electric current leakage and provides protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for power circuits, lighting, building wiring, and internal connections of appliances and equipment. Available in various shapes and sizes with the highest quality and best prices to suit different applications and needs.

  • Conductor Shape: Solid
  • Insulation Material: Polyvinyl Chloride (PVC) 70 ºC
  • Voltage: 300/500 volts
  • Conductor Size (Cross-Sectional Area): 0.75 mm²
  • Conductor Diameter: 0.98 mm
  • Max DC Conductor Resistance at 20°C: 24.5 ohm/km
  • Nominal Insulation Thickness: 0.6 mm
  • Approx Overall Diameter: 2.2 mm
  • Weight: 12 kg/km
  • Length: 100 yards
  • Color: Blue
  • Standard: BS EN 50525-2-31, IEC 60227-3 and SASO-GSO-IEC 60227-3 standards
