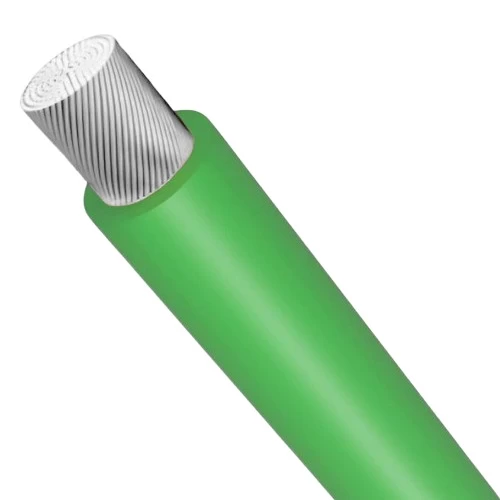

TCU/PVC Flexible Copper American Electrical Wire 12 AWG Size, 1000Volts, Green Color, length 2500 feet | Asharqiyah Cables
(551 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Flexible Tinned Copper electrical american wire (AWM), Size 12 (AWG), Color Green, Overall Diameter 4.20mm, Designed for 1000VAC Rated Voltage, Insulation (PVC +105°C), 2500ft Length, manufactured by Asharqiyah Cables, High quality product manufactured according to the highest US standards (UL STYLE 11563).
Product description
Flexible Tinned Copper electrical american wire (AWM), manufactured by Asharqiyah Cables, according to (UL STYLE 11563) standard. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type: American Wires AWM (Appliance Wiring Material)
- Conductor: Flexible Tinned Copper
- Insulation Material: PVC (+105°C) Heat Resistance
- Voltage: Rated for 1000 Vac
- Conductor Size (Cross-sectional area): 12 AWG
- No. of Wires: 65
- Classification Standards: Class K of ASTM
- Nominal Insulation Thickness: 0.76 mm
- Approx Overall Diameter: 4.20 mm
- Approx Weight: 48 kg/km
- Insulation Color: green
- Standard Length: 2500 feet
- Standards: UL STYLE 11563, UL 758, UL E505934
