TCU/PVC Flexible Copper American Electric Wire 16 AWG Size, 1000Vac, Green Color, 2500ft Length | Asharqiyah Cables
(635 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

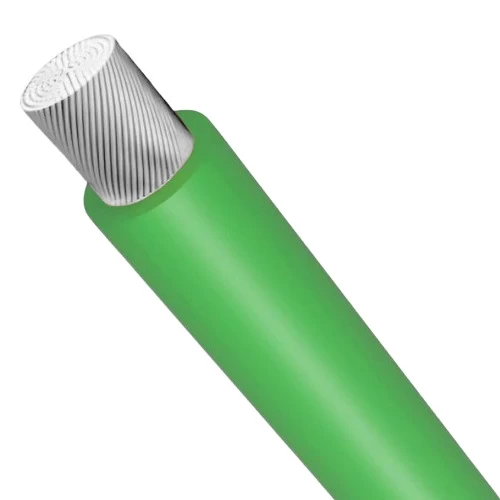

Flexible Tinned Copper electrical american wire (AWM),Sectional area 16 AWG, insulated with PVC +105°C, total diameter 3.08 mm, designed to operate at a rated voltage of 1000 volts, length 2500 fts, color green, manufactured manufactured by Asharqiyah Cables, the optimal solution for connecting household appliances such as air conditioners and washing machines.
Product description
Flexible Tinned Copper electrical american wire (AWM), manufactured by Asharqiyah Cables, according to (UL STYLE 11563) standard. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type: American Wires AWM (Appliance Wiring Material)
- Conductor: Flexible Tinned Copper
- Insulation Material: PVC (+105°C) Heat Resistance
- Voltage: Rated for 1000 Vac
- Conductor Size (Cross-sectional area): 16 AWG
- No. of Wires: 26
- Classification Standards: Class K of ASTM
- Nominal Insulation Thickness: 0.76 mm
- Approx Overall Diameter: 3.08 mm
- Approx Weight: 26 kg/km
- Insulation Color: green
- Standard Length: 2500 feet
- Standards: UL STYLE 11563, UL 758, UL E505934
