Riyadh 0.75 mm Electric Wire, Flexible Copper Conductor, 300/500 Volts, White Color
(798 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

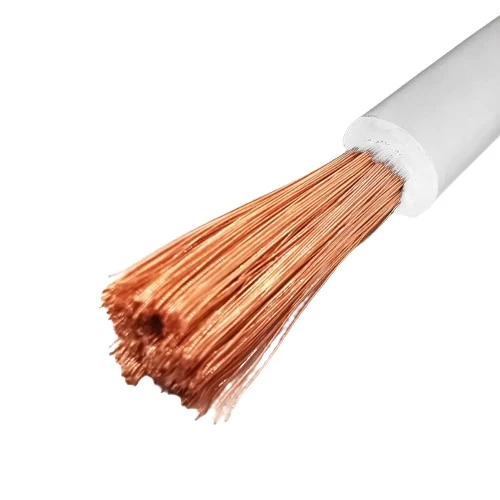

Flexible copper electrical wire (CU/PVC), 0.75 mm2 cross-sectional area, 300/500 volts, insulated with polyvinyl chloride (PVC), as it is forms excellent insulation around the conductor to prevent leakage of electric current, color is white, produced by Riyadh Cables Company.
Product description
Electrical wire (CU/PVC), manufactured by Riyadh Cables Company according to international standards to ensure quality and safety. Insulated with polyvinyl chloride (PVC),They are distinguished by their economical cost, reliable performance, and durability, As it is forms excellent insulation around the conductor to prevent leakage of electric current, protection for the wire against shocks, and abrasion. It also prevents harmful UV rays from damaging the wire and it is also highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for power circuits, lighting, building wiring, and internal wiring of equipment. Available in various shapes, colors and sizes in highest quality and best prices to suit different applications and needs.
- Conductor: Flexible Copper
- Wire Type: (H05V-K)
- Voltage: 300/500 volts
- Conductor Size (Cross-Sectional Area): 0.75 mm
- Wire Diameter: 0.20 mm
- Nominal Insulation Thickness: 0.6 mm
- Overall Diameter: 2.6 mm
- Maximum DC Resistance at 20°C: 26 ohm/km
- Weight: 12 kg/km
- Color: White
- Standards: BS 6004, IEC 60227
