PVC Insulation Flexible Copper Wire, 10mm Size, 450/750V, Brown | Riyadh Cables
(1270 Product Views)

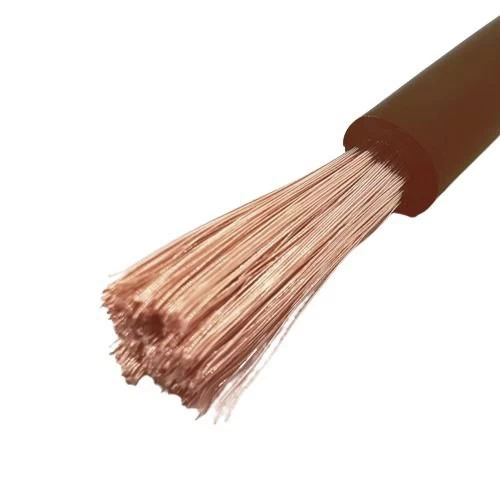

Flexible copper electrical wire (CU/PVC), 10 mm2 cross-sectional area, 450/750 volts, brown color, it is ideal for internal wiring of equipment rated voltage up to 1000 V AC and up to 750 V DC to earth, manufactured by Riyadh Cables Company.
Product description
Flexible copper electrical wire (CU/PVC), manufactured by Riyadh Cables Company according to international standards to ensure quality and safety. Insulated with polyvinyl chloride (PVC),They are distinguished by their economical cost, reliable performance, and durability, As it is forms excellent insulation around the conductor to prevent leakage of electric current, protection for the wire against shocks, and abrasion. It also prevents harmful UV rays from damaging the wire and it is also highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for power circuits, lighting, building wiring, and internal wiring of equipment rated voltage up to 1000 V AC and up to 750 V DC to earth. Available in various shapes, colors and sizes in highest quality and best prices to suit different applications and needs.
- Conductor: Flexible Copper
- Insulation Material: Polyvinyl Chloride (PVC)
- Wire Type: (H07V-K)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 10 mm2
- Number of Wires in Conductor: 74
- Wire Diameter: 0.40 mm
- Conductor Diameter: 5 mm
- Nominal Insulation Thickness: 1 mm
- Overall Diameter: 6.8 mm
- Weight: 125 kg/km
- Maximum DC Resistance at 20°C: 1.91 ohm/km
- Length: 100m coil (±5%)
- Color: Brown
- Standards: SSA 1320, IEC 60227 & BS 6004
