PVC Insulation Flexible Copper Single Electrical Wire, 50mm Size, 450/750V, Green Color | Riyadh Cables
(673 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

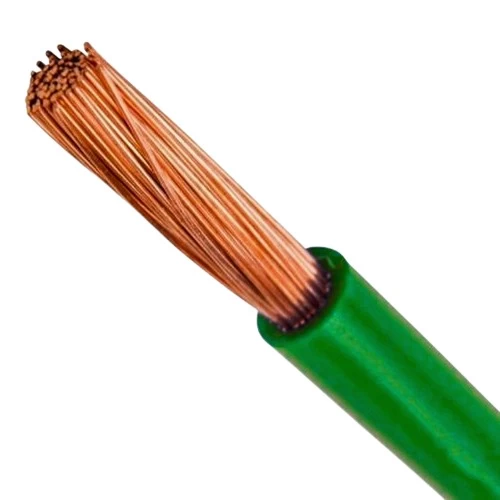

Flexible copper electrical wire, 50 mm 450/750V, PVC insulation, color is green, it is also highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for wiring in control boards, machines and instruments, according to international standards to ensure quality and safety, produced by Riyadh Cables Company.
Product description
Electrical wire (CU/PVC), manufactured by Riyadh Cables Company according to international standards to ensure quality and safety. Insulated with polyvinyl chloride (PVC),They are distinguished by their economical cost, reliable performance, and durability, As it is forms excellent insulation around the conductor to prevent leakage of electric current, protection for the wire against shocks, and abrasion. It also prevents harmful UV rays from damaging the wire and it is also highly resistant to water and moisture. Intended for fixed internal installations, making it suitable for power circuits, lighting, building wiring, and internal wiring of equipment rated voltage up to 1000 V AC and up to 750 V DC to earth. Available in various shapes, colors and sizes in highest quality and best prices to suit different applications and needs.
- Conductor: Flexible Copper
- Wire Type: (H07V-K)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 50 mm
- Number of Wires in Conductor: 371
- Wire Diameter: 0.40 mm
- Conductor Diameter: 11 mm
- Nominal Insulation Thickness: 1.4 mm
- Overall Diameter: 13.9 mm
- Weight: 585 kg/km
- Maximum DC Resistance at 20°C: 0.386 ohm/km
- Length: 1000m drum (±5%)
- Color: Green
- Standards: SSA 1320, IEC 60227 & BS 6004
