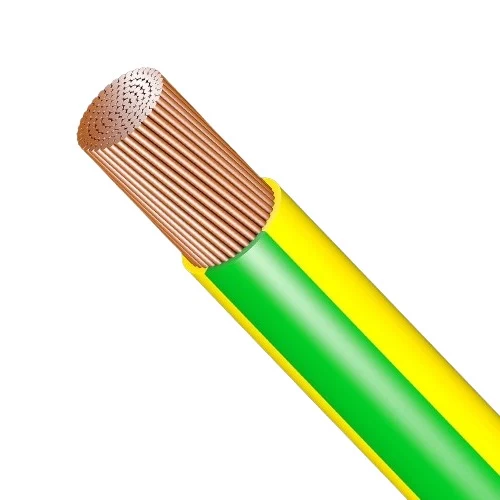

Flexible Copper Earthing Electric Wire 4 sq mm 450/750 Rated Voltage, PVC Insulation, Yellow/Green | Riyadh Cables
(922 Product Views)
Flexible copper earthing electric wire, 4 sq mm size, 450/750 rated voltage, PVC insulation, providing excellent protection against corrosion and abrasion. Highly resistant to water, moisture, and harmful UV rays, making it ideal for use in fixed internal installations. Yellow/Green color. Produced by Riyadh Cables.
in stock
🔗
Related Content
PVC Coated Flexible Conduit, Size 4...
Liquid Tight Flexible Conduit, Size...
Riyadh 6 AWG THHN Stranded Copper A...
4mm 450/750 Volt Solid Copper Wire,...
12x1.5mm 0.6/1kV Stranded Copper Co...
Flexible Copper Earthing Electric W...
Flexible Copper Earthing Electrical...
Flexible Copper Earthing Electric W...
Product description
- Conductor: Flexible Copper
- Wire Type: (H07V-K)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 4 mm²
- Number of Wires in Conductor: 51
- Wire Diameter: 0.30 mm
- Conductor Diameter: 3.1 mm
- Nominal Insulation Thickness: 0.8 mm
- Overall Diameter: 4.8 mm
- Weight: 51 kg/km
- Maximum DC Resistance at 20°C: 4.95 ohm/km
- Length: 100m coil (±5%)
- Color: Yellow/Green
- Standards: SSA 1320, IEC 60227 & BS 6004
