Flexible Copper Wire 10 mm, 450/750Volts, PVC Insulation (90°C), Black Color | Asharqiyah Cables

Flexible Copper Wire 10 mm, 450/750Volts, PVC Insulation (90°C), Black Color | Asharqiyah Cables

(868 Product Views)

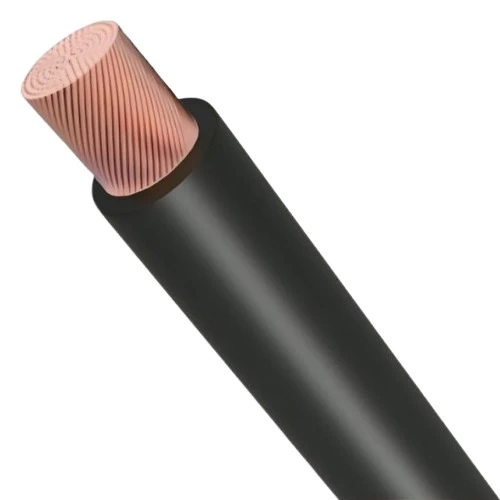

Flexible Copper Electric Wire 10 mm, 450/750V, PVC Insulated, providing reliable protection against electrical leakage, with strong resistance to environmental factors such as moisture and corrosion. Commonly used in heavy industrial applications and large power systems. Black color produced by Asharqiyah Cables.

in stock

Quantity

Call Now

🔗 Related Content

Alfanar Cable 4 mm Single Core, Str... Riyadh 14 AWG THHN Stranded Copper... Tie Wires Steel Wire Mesh Fence Size 2.5×... Flexible Copper Wire 10 mm, 450/750... Flexible Copper Wire 25 mm, 450/750... Flexible Copper Electric Wire 150 m... Flexible Copper Electrical Wire 50...

Product description

Flexible copper electrical wire (CU/PVC), manufactured by Asharqiyah Cables Company. Produced according to international standards to ensure quality and safety. PVC insulated (90°C), offering a cost-effective, reliable, and durable solution. The insulation provides excellent protection around the conductor, preventing electric current leakage, and offers protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations in conduits, ducts, or similar closed systems. It can be used in lighting fittings, switch and control devices, control panels, inside appliances, and similar applications. Available in various colors and sizes with the highest quality and best prices to suit diverse applications and needs.

Wire Type: (H07V2-K)
Conductor: Flexible Copper (Class 5)
Insulation Material: PVC (90°C)
Voltage: 450/750 volts
Conductor Size (Cross-Sectional Area): 10 mm²
Nominal Insulation Thickness: 1.00 mm
Approx Overall Diameter: 6.10 mm
Weight: 115 kg/km
Maximum DC Resistance at 20°C: ≤1.91 ohm/km
Standard Length: 100 yards (91.4 meters)
Insulation Color: Black
Standards: IEC 60227-3, BS EN 50525-2-31

Additional Information▼

Detailed Technical Specifications for 10mm Wire

A 10mm wire (10 mm²) is defined as a copper conductor with a standard cross-sectional area of up to 10 square millimeters. It is the most in-demand gauge for sub-networks and secondary distribution systems.

Based on product data from Al-Sharqiah Cables, this wire features a Class 5 (Stranded) Copper Conductor, meaning the wires are twisted rather than solid. This provides high flexibility when winding or unwinding without interrupting the connection. The insulation material used is 90°C Heat-Resistant PVC, which is water and moisture-resistant, making it ideal for Saudi Arabia's hot and dry climate.

The permissible voltage is 450/750 volts, covering the needs of most commercial and residential facilities in the Kingdom. The length of each reel is 300 feet (approximately 91.4 meters), reducing the need for repeated connections that could become weak points in the network.

Buying Guide and Comparison: 10mm Wire vs. 16mm Wire

When planning construction projects in 2026, electrical experts recommend comparing wire gauges before purchasing. If the electrical loads for lights or switches range between 20 to 25 amps, a 10mm wire is sufficient and cost-effective. However, if the load exceeds 25 amps, or if there is a high continuous current, a 16mm wire should be used to prevent conductor overheating.

10mm wire from Al-Sharqiah Cables offers an excellent balance between cost and performance, making it the best choice for electrical appliances, control panels, and internal lighting systems.

How to Safely Install 10mm Wire

Installing this wire in channels or conduits requires precise procedures to ensure safety from electric shocks.

Stripping the Insulation: Use a sharp electrician's knife to carefully open the black insulation layer, avoiding scratching the copper conductor surface to ensure an excellent electrical connection.
Connection: Wrap the copper ends around the conductors in the control panel or switches, and ensure screws are tightened firmly to slightly bend the conductor inside the screw to prevent high electrical resistance.
Final Insulation: Use plastic insulators or electrical insulating paint to cover connection points after confirming good contact.

Always remember that this wire is designed for fixed installations inside closed conduits, not for direct exposed installation in areas exposed to intense sunlight.
