Flexible Copper NYA Wire, 2.5 mm Size, 1000V, PVC 90°C Insulation, orange, 100 Yards | RESCAB
(728 Product Views)

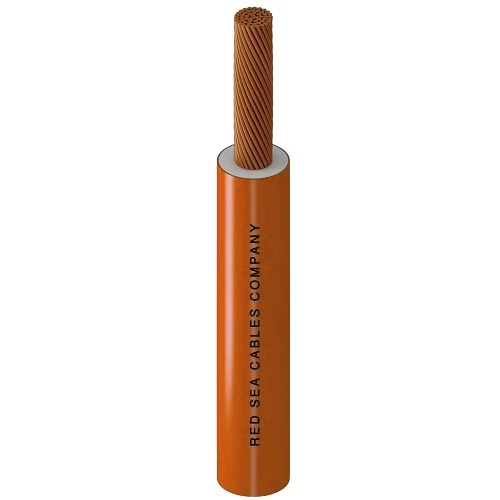

Stranded copper electrical wire (CU/PVC), 2.5 sq mm2 cross section, 1000V, manufactured by Red Sea Cables Company It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations.
Product description
Flexible copper electrical wire (CU/PVC), manufactured by Red Sea Cables Company, according to International and British standards to ensure quality and safety, Insulated with polyvinyl chloride (PVC 90°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations and building wiring in conduits or ducts, where it can be used in lighting fixtures, switchgear, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Wire Type: H07V2-K
- Conductor: Flexible Copper
- Insulation Material: PVC 90°C
- Voltage: up to 1000Vac or upto 750Vdc
- Conductor Size (Cross-Sectional Area): 2.5 mm2
- No x Diameter of Wires: 46 x 0.25mm
- Nominal Insulation Thickness: 0.8 mm
- Approx Overall Diameter: 3.8 mm
- Maximum DC Resistance at 20°C: 7.98 ohm/km
- Current Carrying Capacity (PVC 90°C): 30 Amper
- Standard Length: 100 Yards (91.4 meter) / Plastic Reels
- Insulation Color: orange
- Reference Standards: IEC 60227, SASO 1320, BS 6004
