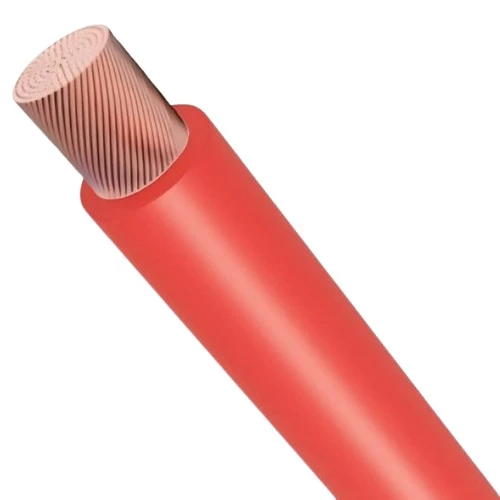

Flexible Copper Electric Wire 95 sq mm, 450/750V, PVC Insulation (90°C), Red Color | Asharqiyah Cables

Flexible copper electrical wire (CU/PVC), manufactured by Asharqiyah Cables Company. Produced according to international standards to ensure quality and safety. PVC insulated (90°C), offering a cost-effective, reliable, and durable solution. The insulation provides excellent protection around the conductor, preventing electric current leakage, and offers protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations in conduits, ducts, or similar closed systems. It can be used in lighting fittings, switch and control devices, control panels, inside appliances, and similar applications. Available in various colors and sizes with the highest quality and best prices to suit diverse applications and needs.

• Wire Type: (H07V2-K)
• Conductor: Flexible Copper (Class 5)
• Insulation Material: PVC (90°C)
• Voltage: 450/750 volts
• Conductor Size (Cross-Sectional Area): 95 mm²
• Nominal Insulation Thickness: 1.60 mm
• Approx Overall Diameter: 14.80 mm
• Weight: 930 kg/km
• Maximum DC Resistance at 20°C: ≤0.206 ohm/km
• Standard Length: 1000 meters drum
• Insulation Color: Red
• Standards: IEC 60227-3, BS EN 50525-2-31
