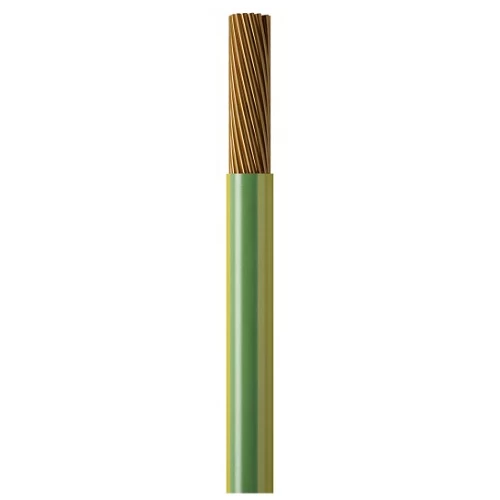

Flexible Copper Earthing Wire, 150 sq mm Cross Section 450/750V, Yellow/Green | Jeddah Cables

(1077 Product Views)

Flexible Copper Earthing Wire, 150 sq mm Cross Section 450/750V, insulated with PVC providing superior protection from electrical shocks and corrosion in large electrical systems. Used in heavy industrial applications to ensure safety and reliable performance. Yellow/Green color. Produced by Jeddah Cables.

Flexible copper electrical wire (CU/PVC), manufactured by Jeddah Cables Company. Insulated with Polyvinyl Chloride (PVC), a type of plastic known for its excellent insulating properties and resistance to water and moisture. It forms an exceptional insulating layer around the conductor, preventing electrical current leakage and protecting the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. Used to provide a safe path for electric current in the event of a short circuit, by discharging any excess electrical charges to the ground. This protects people and equipment from electric shocks caused by electrical interference. Available in various shapes and sizes with the highest quality and best prices to suit different applications and needs.

Conductor: Flexible Copper
Insulation Material: Polyvinyl Chloride (PVC) 85 ºC (or LSHF)
Voltage: 450/750 volts
Conductor Size (Cross-Sectional Area): 150 mm²
Nominal Insulation Thickness: 1.6 mm
Approx Overall Diameter: 19 mm
Weight: 1390 kg/km
Max DC Conductor Resistance at 20°C: 0.129 ohm/km
Current Rating Laid in Conduits: 316 Ampere
Current Rating Laid in Free Air: 473 Ampere
Color: Green/Yellow
Standard: IEC 60227
