Flexible Copper Earthing Electrical Wire 6mm 450/750V, PVC Insulation, Green/Yellow | Riyadh Cables
(1173 Product Views)

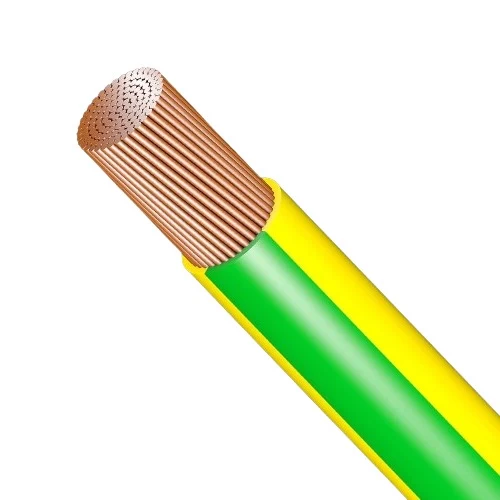

Flexible copper earthing electrical wire, 6mm2 size, 450/750V, PVC insulation, providing effective protection against electrical shocks and corrosion. Highly resistant to environmental factors, making it ideal for use in fixed electrical circuits. Green/Yellow color. Produced by Riyadh Cables.
in stock
🔗
Related Content
PVC Coated Flexible Conduit, Size 4...
Liquid Tight Flexible Conduit, Size...
Riyadh 6 AWG THHN Stranded Copper A...
4mm 450/750 Volt Solid Copper Wire,...
12x1.5mm 0.6/1kV Stranded Copper Co...
Flexible Copper Earthing Electrical...
Flexible Copper Earthing Electric W...
Flexible Copper Earthing Electrical...
Product description
- Conductor: Flexible Copper
- Wire Type: (H07V-K)
- Voltage: 450/750 volts
- Conductor Size (Cross-Sectional Area): 6 mm²
- Number of Wires in Conductor: 77
- Wire Diameter: 0.30 mm
- Conductor Diameter: 3.8 mm
- Nominal Insulation Thickness: 0.8 mm
- Overall Diameter: 5.3 mm
- Weight: 71 kg/km
- Maximum DC Resistance at 20°C: 3.30 ohm/km
- Length: 100m coil (±5%)
- Color: Yellow/Green
- Standards: SSA 1320, IEC 60227 & BS 6004
