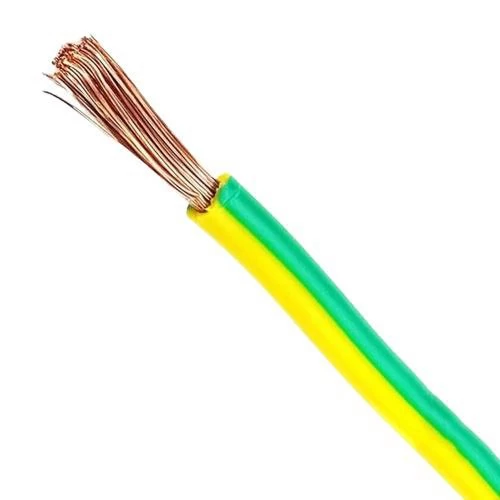

Flexible Copper Earth Wire CU/PVC, 10mm Size, 450/750V, Green/Yellow | Nohascom Factory

Flexible Copper Earth Wire CU/PVC, 10mm Size, 450/750V, Green/Yellow | Nohascom Factory

(803 Product Views)

YouMats

Flexible copper electrical wire for earthing (CU/PVC), 10 mm2 cross-sectional area, 450/750 volts, green/yellow color, the grounding wire is used to provide a safe path for electric current to flow to the ground in the event of a short circuit, manufactured by Nohascom Factory International Co.

in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

Flexible copper electrical wire for earthing (CU/PVC), manufactured by Nohascom Factory International Co. Insulated with Polyvinyl Chloride (PVC), a type of plastic renowned for its excellent insulating properties and resistance to water and moisture. It forms an exceptional insulating layer around the conductor, preventing electrical current leakage and protects the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. The grounding wire is used to provide a safe path for electric current to flow to the ground in the event of a short circuit, thus protecting people and equipment from electric shocks and fires. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

  • Conductor: Flexible Copper
  • Insulation Material: Polyvinyl Chloride (PVC) 70 ºC
  • Voltage: 450/750 volts
  • Conductor Size (Cross-Sectional Area): 10 mm2
  • Number of Wires : 80
  • Conductor Diameter: 0.40 mm
  • Max DC Conductor Resistance at 20°C: 1.91 ohm/km
  • Nominal Insulation Thickness: 1 mm
  • Approx Overall Diameter: 6.2 mm
  • Weight: 119 kg/km
  • Length: 100 yards (91.44 meters) on coil (Custom lengths are available upon request)
  • Color: Green/Yellow
  • Standard: IEC 60227
