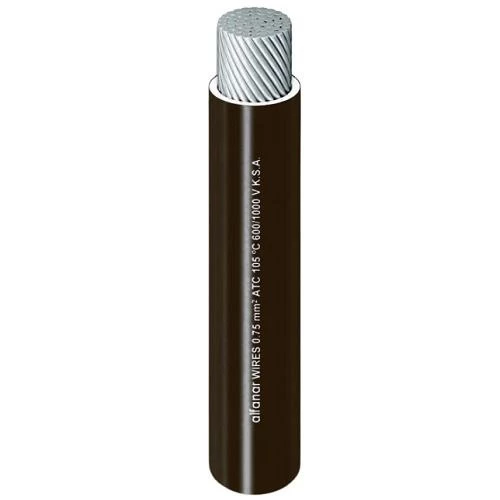

Alfanar 50mm Flexible Tinned Copper Electrical Wire, 600/1000 volts, Brown Color

Flexible tinned copper electrical wire (CU/PVC), manufactured by Alfanar Company, Insulated with Polyvinyl Chloride (PVC), a type of plastic renowned for its excellent insulating properties and resistance to water and moisture. It forms an exceptional insulating layer around the conductor, preventing electrical current leakage and protects the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. Suitable for use as an internal connector in controllers, motor starters, and rectifier equipment. Designed for installation in control, metering, switching, and instrumentation panels. Applicable in a wide range of applications from automation and process control to building and construction, as well as in transmission, distribution, and power networks. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

• Conductor Type: Tinned Copper Conductor
• Conductor Shape: Flexible
• Insulation Material: (PVC 70 ºC) or (PVC 105 ºC)
• Voltage: 600/1000 volts
• Conductor Size (Cross-Sectional Area): 50 mm2
• Number of Wires : 392
• Conductor Diameter: 0.4 mm
• Max DC Conductor Resistance at 20°C: 0.393 ohm/km
• Nominal Insulation Thickness: 1.4 mm
• Approx Overall Diameter: 12.6 mm
• Weight: 544 kg/km
• Length: 300 feet (100 yards) on coil, other lengths available on request
• Color: Brown
• Standard: BS 6231
