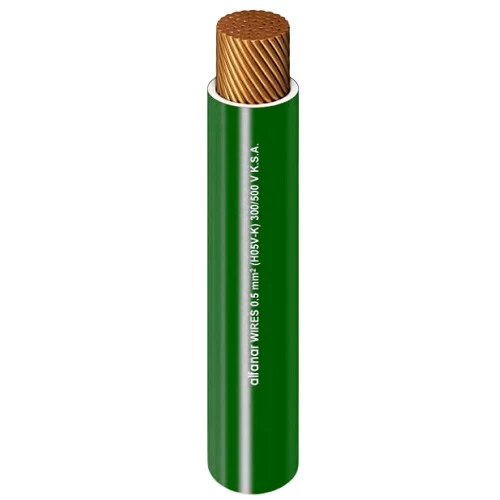

Alfanar 1mm Electrical Wire 300/500V, Flexible Copper Conductor, Heat Resistant PVC Insulation, 300ft Length

Flexible copper electrical heat resistant wire (CU/PVC), Produced by Al Fanar Company in accordance with the latest BS or IEC standards. Insulated with Polyvinyl Chloride (PVC 90 ºC), a type of plastic renowned for its excellent insulating properties and resistance to water and moisture. It forms an exceptional insulating layer around the conductor, preventing electrical current leakage and protects the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. Suitable for use in environments requiring high temperature resistance, such as factories utilizing painting and drying equipment, as well as in general electrical equipment like motors, transformers, and household appliances. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

• Conductor Type: Copper
• Conductor Shape: Flexible
• Insulation Material: (PVC 90 ºC) Heat Resistant
• Voltage: 300/500 volts
• Conductor Size (Cross-Sectional Area): 1 mm2
• Number of Wires : 32
• Conductor Diameter: 0.2 mm
• Max DC Conductor Resistance at 20°C: 19.5 ohm/km
• Nominal Insulation Thickness: 0.6 mm
• Approx Overall Diameter: 2.5 mm
• Weight: 15 kg/km
• Length: 300 feet on Coil (100 yards). Other lengths available on request
• Color: Green
• Standard: BS EN 50525-2-31, IEC 60227-3 and SASO-GSO-IEC 60227-3 standards
