Alfanar 0.75mm Wire 300/500V, Flexible Copper Conductor, Heat Resistant PVC Insulation, Coil Length 300ft

Alfanar 0.75mm Wire 300/500V, Flexible Copper Conductor, Heat Resistant PVC Insulation, Coil Length 300ft

Name: Alfanar 0.75mm Wire 300/500V, Flexible Copper Conductor, Heat Resistant PVC Insulation, Coil Length 300ft
Brand: Al Fanar

(1081 Product Views)

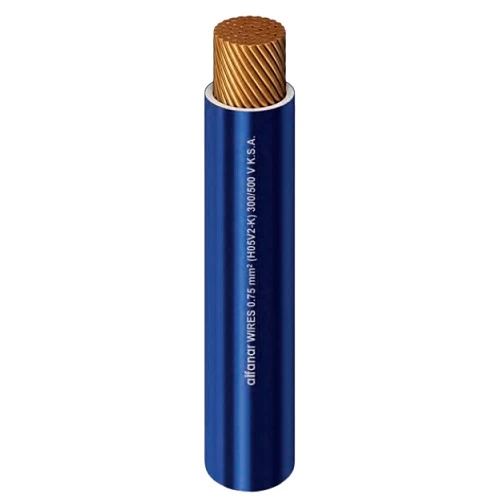

Flexible copper electrical heat resistant wire (CU/PVC), 0.75 mm2 cross-sectional area, 300/500 volts, Its cost is economical, insulated with polyvinyl chloride (PVC 90 ºC), manufactured by Alfanar Company.

in stock

Quantity

Call Now

🔗 Related Content

Exa Alfanar Porcelain Alfanar Cable 4 mm Single Core, Str... Riyadh 14 AWG THHN Stranded Copper... Tie Wires Steel Wire Mesh Fence Size 2.5×... Alfanar 0.75mm Wire 300/500V, Flexi... Alfanar 0.75sq mm Wire 300/500V, Fl... Alfanar 0.75mm Wire 300/500V, Flexi...

Product description

Flexible copper electrical heat resistant wire (CU/PVC), Produced by Al Fanar Company in accordance with the latest BS or IEC standards. Insulated with Polyvinyl Chloride (PVC 90 ºC), a type of plastic renowned for its excellent insulating properties and resistance to water and moisture. It forms an exceptional insulating layer around the conductor, preventing electrical current leakage and protects the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. Suitable for use in environments requiring high temperature resistance, such as factories utilizing painting and drying equipment, as well as in general electrical equipment like motors, transformers, and household appliances. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

Conductor Type: Copper
Conductor Shape: Flexible
Insulation Material: (PVC 90 ºC) Heat Resistant
Voltage: 300/500 volts
Conductor Size (Cross-Sectional Area): 0.75 mm2
Number of Wires : 24
Conductor Diameter: 0.2 mm
Max DC Conductor Resistance at 20°C: 26 ohm/km
Nominal Insulation Thickness: 0.6 mm
Approx Overall Diameter: 2.3 mm
Weight: 12 kg/km
Length: 300 feet on Coil (100 yards). Other lengths available on request
Color: Blue
Standard: BS EN 50525-2-31, IEC 60227-3 and SASO-GSO-IEC 60227-3 standards

Additional Information▼

Why 0.75mm wire performs in Saudi conditions

Saudi summers push standard insulation past its limit. The 0.75mm wire handles this better because of the PVC 90 ºC rating. You can run it through factory walls in Riyadh without worrying about cracking. Sand storms do not touch the copper core. Just keep the conduit sealed. The insulation stays flexible even at 45C. That flexibility matters when routing through tight junction boxes. We see fewer insulation failures with this gauge in 2026. It simply holds up.

Load limits and sizing rules

Not every circuit needs this thickness. The 0.75mm cross-section supports low-voltage control wiring. Stick to the 300/500 volts rating. It handles motor control panels and transformer tap lines perfectly. Do not use it for main power drops. You will overload the 24 strands. Calculate your amperage first. A single 0.75mm run handles roughly 8 to 10 amps safely in normal air. Add that data to your load schedule. It keeps panels cool and prevents tripping. Compare it to 1.0mm or 1.5mm gauges only when your design specifies higher current draws.

Installation checklist for 0.75mm wire

SASO-GSO-IEC 60227-3 compliance is not just a label. It means the wire passed thermal cycling tests. You get that 0.6mm insulation thickness exactly as listed. Strip the blue PVC carefully. Do not nick the copper. Use crimp terminals rated for 0.75mm. Tighten to spec. Loose connections cause heat spikes. Check torque values on terminal blocks. This wire costs less than XLPE alternatives. You save money on bulk runs. The 300-foot coil unspools cleanly. No kinking. Just clean cuts and secure terminations. Always verify the Alfanar batch number against the SASO certificate before cutting.
