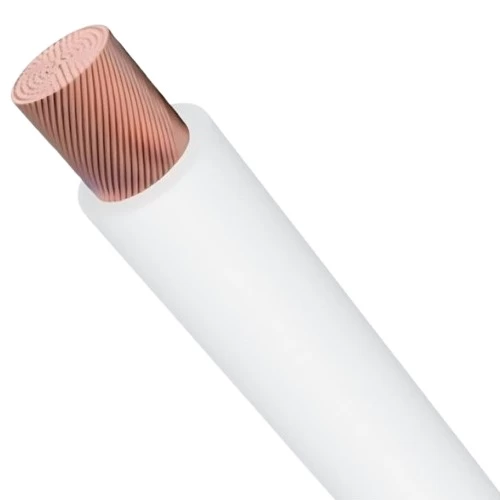

70sq mm Single Core Wire 600/1000 Rated Voltage, Flexible Copper, PVC Insulation (70°C), White | Asharqiyah Cables

Flexible copper electrical wire (CU/PVC), manufactured by Asharqiyah Cables Company. Produced according to international standards to ensure quality and safety. PVC insulated (70°C), offering a cost-effective, reliable, and durable solution. The insulation forms excellent protection around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. It is designed for installation in wiring of switch, control, metering, relay and instrumentation panels of power switchgear, and for such purpose as internal connections in rectifier equipment and its motor starters/controllers. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.

• Conductor: Flexible Copper (Class 5)
• Insulation Material: PVC (70°C)
• Voltage: 600/1000 volts
• Conductor Size (Cross-Sectional Area): 70 mm2
• Nominal Insulation Thickness: 1.40 mm
• Approx Overall Diameter: 14.50 mm
• Weight: 735 kg/km
• Maximum DC Resistance at 20°C: ≤0.272 ohm/km
• Standard Length: 1000m drum
• Insulation Color: White
• Reference Standards: BS 6231, BS EN 60228, BS EN 50363
