6mm Electric Wire 600/1000 Rated Voltage, Flexible Copper, Heat Resistant PVC Insulation (105°C), Yellow | Alsharqiyah Cables

6mm Electric Wire 600/1000 Rated Voltage, Flexible Copper, Heat Resistant PVC Insulation (105°C), Yellow | Alsharqiyah Cables

(824 Product Views)

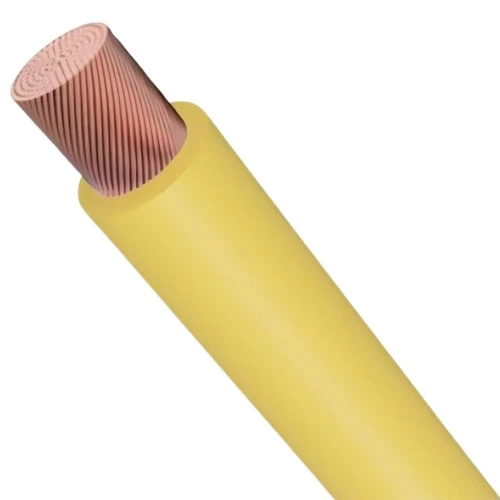

Flexible copper electrical wire (CU/PVC), 6 mm2 cross section, 600/1000 Volts, this cable finds extensive use in wiring of metering, relay and instrumentation panels of power switchgear, color is yellow, manufactured by Alsharqiyah Cables Company.

in stock

Quantity

Call Now

🔗 Related Content

Alfanar Cable 4 mm Single Core, Str... Ohod Electric Water Heater Riyadh 14 AWG THHN Stranded Copper... Tie Wires 6mm Electric Wire 600/1000 Rated Vo... 6mm Electric Wire 600/1000 Rated Vo... 6mm Flexible Tinned Copper Electric...

Product description

Electrical wire (CU/PVC), manufactured by Alsharqiyah Cables Company. Produced according to international standards to ensure quality and safety. PVC insulated (105°C), offering a cost-effective, reliable, and durable solution. The insulation forms excellent protection around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. It is designed for installation in wiring of switch, control, metering, relay and instrumentation panels of power switchgear, and for such purpose as internal connections in rectifier equipment and its motor starters/controllers. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.

Conductor: Flexible Copper (Class 5)
Insulation Material: Heat Resistant PVC (105°C)
Voltage: 600/1000 volts
Conductor Size (Cross-Sectional Area): 6 mm
Nominal Insulation Thickness: 0.8 mm
Approx Diameter: 4.70 mm
Weight: 70 kg/km
Maximum DC Resistance at 20°C: ≤3.30 ohm/km
Standard Length: 100 yards (91.4 meters)
Insulation Color: Yellow
Reference Standards: BS 6231, BS EN 60228, BS EN 50363

Additional Information▼

Technical Specifications for 6mm Wire Coil (CU/PVC)

To open the fuse cover around a 6mm wire, here are the precise figures that ensure product compatibility with your electrical networks in Saudi Arabia. The conductor is made of annealed copper (Class 5), meaning it is extremely flexible and reduces the risk of breakage during installation in tight spaces or around concrete beams.

The cross-sectional area is 6 mm² with precision, which is the standard size used for internal connections of electrical appliances and control panels. The insulation is made of heat-resistant PVC up to 105 degrees Celsius, making it ideal for resisting extreme heat in Saudi machine rooms where temperatures exceed 45 degrees Celsius.

The permissible voltage is 600/1000 volts, and it accepts a maximum DC resistance of ≤3.30 ohms/km at 20 degrees Celsius. The cable weight is 70 kg/km, and its total diameter is 4.70 mm with an insulation thickness of 0.8 mm. The yellow color enhances safety during installation.

How many meters are in a 6mm wire coil? And what is its price in Riyadh and Dammam?

The cost of a 6mm wire coil depends on global copper prices and the availability of cables in the Saudi market. A 6mm wire coil from Sharqia Cables comes with a standard length of 100 yards (91.4 meters).

Regarding the price, the price of a 6mm wire coil in Riyadh changes according to the season and offers, but at YouMats, we provide the best prices in the Kingdom. If you are looking for the price of a 6mm wire coil in Dammam or Jeddah, delivery is available to all regions of the Kingdom without a significant price difference compared to major cities.

For an accurate calculation of your project budget, the approximate cost per meter is estimated by dividing the coil price by 91.4 meters. We always recommend buying a full coil to ensure continuity of connection and minimize connection waste.

Why choose Sharqia Cables 6mm wire for Saudi projects?

In construction projects in Saudi Arabia, harsh climatic conditions require high-quality materials. A 6mm wire from Sharqia Cables complies with British standards BS 6231 and BS EN 60228, ensuring compatibility with the Saudi electrical code.

This wire is not just an electrical conductor; it is protection against shocks, friction, and corrosion. Its high resistance to water and moisture makes it a safe option for projects in coastal areas or factories with high humidity.

At YouMats, we guarantee you real 'annealed copper' quality, not fake texts, with high-quality PVC insulation that protects connections from harmful sunlight and environmental damage.

Order a 6mm wire coil now
