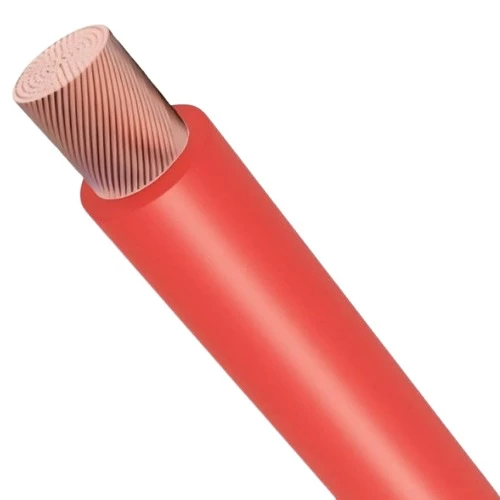

4 mm Flexible Copper Wire 450/750 Voltage Rating, PVC Insulated (70°C), Red | Asharqiyah Cables

4 mm Flexible Copper Wire 450/750 Voltage Rating, PVC Insulated (70°C), Red | Asharqiyah Cables

(337 Product Views)

YouMats

4 mm 450/750 V Flexible Copper Wire, insulated with PVC providing reliable protection against electrical leakage and resisting corrosion and moisture. Ideal for large industrial electrical systems and control systems. Red color produced by Asharqiyah Cables.

in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

Flexible copper electrical wire (CU/PVC), manufactured by Asharqiyah Cables Company. Produced according to international standards to ensure quality and safety. PVC insulated (70°C), offering a cost-effective, reliable, and durable solution. The insulation provides excellent protection around the conductor, preventing electric current leakage, and offers protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations in conduits, ducts, or similar closed systems. It can be used in lighting fittings, switch and control devices, control panels, inside appliances, and similar applications. Available in various colors and sizes with the highest quality and best prices to suit diverse applications and needs.

  • Wire Type: H07V-K
  • Conductor: Flexible Copper (Class 5)
  • Insulation Material: PVC (70°C)
  • Voltage: 450/750 volts
  • Conductor Size (Cross-Sectional Area): 4 mm²
  • Nominal Insulation Thickness: 0.80 mm
  • Approx Overall Diameter: 4.15 mm
  • Weight: 48 kg/km
  • Maximum DC Resistance at 20°C: ≤4.95 ohm/km
  • Standard Length: 100 yards (91.4 meters)
  • Insulation Color: Red
  • Standards: IEC 60227-3, BS EN 50525-2-31
