18 AWG Flexible Tinned Copper Wire, PVC Insulation (+105°C) green, 600 volts | Asharqiyah Cables
(674 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

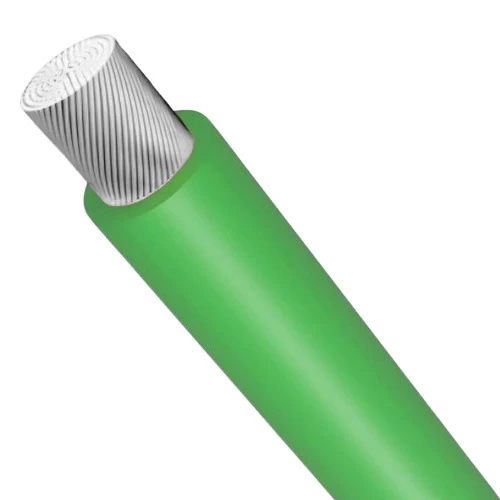

Flexible tinned copper electrical american wire (AWM),18 AWG, insulation material is green , designed to operate at a rated voltage of 600 volts AC or 750 volts DC, Covered with a 1.14 mm thick layer of insulation (PVC+105°C) , 2500 feet in length, weight 25 kg/km ,manufactured by Asharqiyah Cables Company, is an ideal choice for applications requiring high-quality electrical conductors that comply with stringent American standard
Product description
Flexible tinned copper electrical american wire (AWM), manufactured by Asharqiyah Cables. complying with (UL STYLE 1028) standard. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type: American Wires AWM (Appliance Wiring Material)
- Conductor: Flexible Tinned Copper
- Insulation Material: PVC (+105°C) Heat Resistance
- Voltage: Rated for 600 Vac or 750 Vdc
- Conductor Size (Cross-sectional area): 18 AWG
- No. of Wires: 16
- Classification Standards: Class K of ASTM
- Nominal Insulation Thickness: 1.14 mm
- Approx Overall Diameter: 3.45 mm
- Approx Weight: 25 kg/km
- Insulation Color: green
- Standard Length: 2500 feet
- Standards: UL STYLE 1028, UL 758, UL E505934
