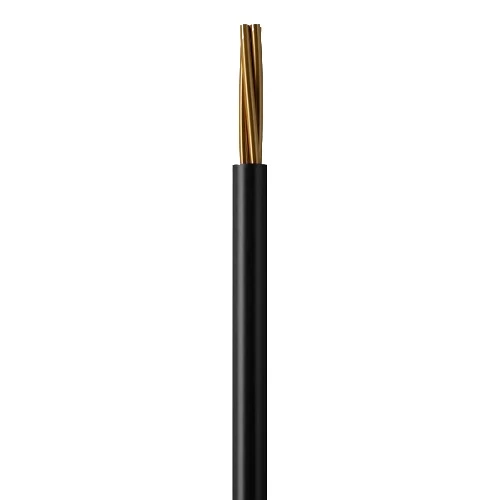

16mm Single Core Flexible Electric Wire CU/PVC, 450/750 Voltage Rating, Black Color | Jeddah Cables

Flexible copper electrical wire (CU/PVC), manufactured by Jeddah Cables Company. Insulated with Polyvinyl Chloride (PVC), a type of plastic renowned for its excellent insulating properties and resistance to water and moisture. The insulation forms an exceptional protective layer around the conductor, preventing electrical current leakage and protecting the copper core from damage and corrosion caused by friction or other external factors. This provides superior protection for people and devices against electric shock, extends the lifespan of the wire, and slows down its degradation. Additionally, it is considered a cost-effective option compared to other insulation types. Suitable for internal wiring in electric motors, transformers, other electrical appliances, and lighting. Available in various shapes and sizes with the highest quality and best prices to suit different applications and needs.

• Conductor: Flexible Copper
• Insulation Material: Polyvinyl Chloride (PVC) 85 ºC (or LSHF)
• Voltage: 450/750 volts
• Conductor Size (Cross-Sectional Area): 16 mm²
• Nominal Insulation Thickness: 1.0 mm
• Approx Overall Diameter: 7.1 mm
• Weight: 170 kg/km
• Max DC Conductor Resistance at 20°C: 1.21 ohm/km
• Current Rating Laid in Conduits: 78 Ampere
• Current Rating Laid in Free Air: 115 Ampere
• Color: Black
• Standard: IEC 60227
