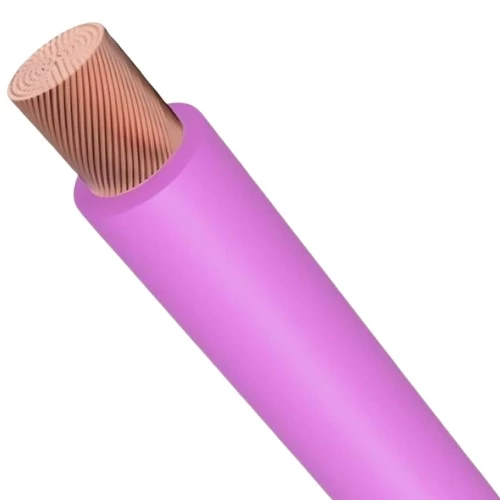

Flexible copper electrical american wire (AWM), size 14 AWG Insulated with (PVC+105°C), the color of the insulation material is violet, designed to work at a rated voltage of 600 designed to operate at rated voltage of 600V, no .of wires 41 , Standard length 2500 feet, manufactured by Asharqiyah Cables Company. Its excellent heat and moisture resistance ensures optimal performance in various applications.
Product description
Flexible copper electrical american wire (AWM), manufactured by Asharqiyah Cables. complying with (UL STYLE 1028) standard. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type: American Wires AWM (Appliance Wiring Material)
- Conductor: Flexible Copper
- Insulation Material: PVC (+105°C) Heat Resistance
- Voltage: Rated for 600 Vac or 750 Vdc
- Conductor Size (Cross-sectional area): 14 AWG
- No. of Wires: 41
- Classification Standards: Class K of ASTM
- Nominal Insulation Thickness: 1.14 mm
- Approx Overall Diameter: 4.30 mm
- Approx Weight: 39 kg/km
- Insulation Color: violet
- Standard Length: 2500 feet
- Standards: UL STYLE 1028, UL 758, UL E505934
Additional Information▼
14 AWG Wire Specifications in Millimeters
When converted to millimeters, 14 AWG wire has a cross-sectional area of 2.08 mm² and a diameter of 1.63 mm. These specifications are important to ensure the wire meets the electrical requirements of the device or application you are using.
Usage Guidelines and Suitable Applications
14 AWG electrical wire is suitable for use in specific applications that require a certain current load. It is commonly used in internal wiring for household electrical appliances such as air conditioners and automatic washing machines. It is also used in industrial applications such as control cabinets and cooling equipment. The wire features high resistance to heat, moisture, oils, and chemicals, making it a reliable choice in various work environments.
Purchase and Usage Information
14 AWG electrical wire from Eastern Cables is available in the highest quality at the best prices. You can order the wire through the Yomats website, which offers fast delivery services across the Kingdom of Saudi Arabia. To purchase online, visit the product page on Yomats and use the SKU: YT-70345087. A quality guarantee is available according to the required American specifications.
