14 AWG Coil wire Flexible Copper, PVC Insulated (+105°C) brown, 600 V | Asharqiyah Cables
(700 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

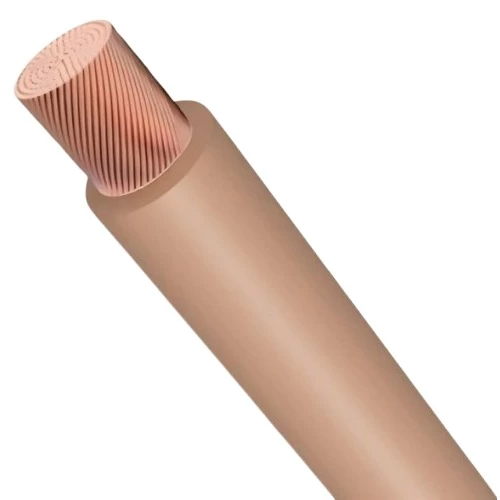

Flexible copper electrical american wire (AWM), size 14 AWG with superior PVC insulation rated at 105°C and 600 V, no .of wires 41 , Length 2500 feet, ,manufactured by Asharqiyah Cables Company. Its excellent heat and moisture resistance ensures optimal performance in various applications. Ideal for both household and industrial appliances.
Product description
Flexible copper electrical american wire (AWM), manufactured by Asharqiyah Cables. complying with (UL STYLE 1028) standard. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.
- Wire Type: American Wires AWM (Appliance Wiring Material)
- Conductor: Flexible Copper
- Insulation Material: PVC (+105°C) Heat Resistance
- Voltage: Rated for 600 Vac or 750 Vdc
- Conductor Size (Cross-sectional area): 14 AWG
- No. of Wires: 41
- Classification Standards: Class K of ASTM
- Nominal Insulation Thickness: 1.14 mm
- Approx Overall Diameter: 4.30 mm
- Approx Weight: 39 kg/km
- Insulation Color: brown
- Standard Length: 2500 feet
- Standards: UL STYLE 1028, UL 758, UL E505934
Additional Information▼
Specifications of 14 AWG Wire
14 AWG wire is an American standard wire, equivalent to a cross-sectional area of 2.5 mm² in the metric system. This wire is commonly used in residential and industrial electrical applications in Saudi Arabia due to its ability to handle a current of up to 15 amperes.
Buying Guide for 14 AWG Electrical Wire
When selecting 14 AWG electrical wire, it is important to consider several factors to meet your project's needs:
- Type of Project: Is it a residential or commercial project?
- Intended Use: Internal wiring for electrical appliances such as air conditioners or automatic washing machines.
- Compliance with Standards: Ensure the wire meets Saudi standards as well as UL 1028.
- Wire Length: The standard length of 2500 feet covers most needs, but make sure to measure accurately before purchasing.
Safe Installation Guidelines
To avoid fire hazards and damage:
- Always use protective devices such as circuit breakers.
- Avoid exceeding the maximum load of 15 amperes.
- Use the appropriate tools for connecting wires.
- Consult a certified electrician if the connections are complex.
Comparison of 14 AWG Wire with Other Sizes
14 AWG wire is the ideal choice for medium loads, but some applications require other sizes:
| Size (AWG) | Cross-Sectional Area (mm²) | Maximum Current (Amperes) | Common Use |
|---|---|---|---|
| 12 | 3.31 | 20 | Main lighting circuits |
| 14 | 2.5 | 15 | Electrical appliance circuits |
| 16 | 1.31 | 10 | Secondary circuits |
