120mm Electric Wire 600/1000 Rated Voltage, Flexible Copper, Heat Resistant PVC Insulation (105°C), Orange | Asharqiyah Cables
(662 Product Views)

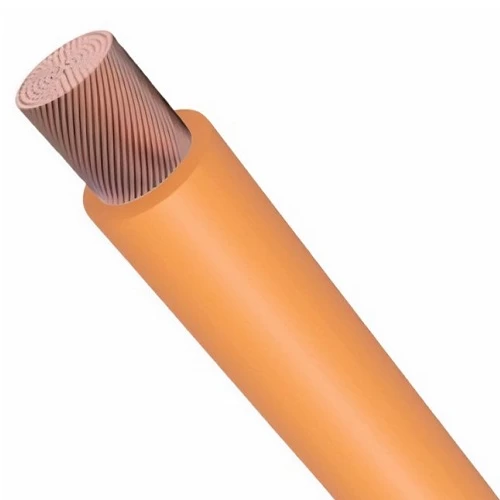

Flexible copper electrical wire (CU/PVC), 120 mm2 cross section, 600/1000 Volts, color is orange, manufactured by Alsharqiyah Cables Company, according to international standards, It is designed for installation in wiring of metering, relay and instrumentation panels of power switchgear.
Product description
Electrical wire (CU/PVC), manufactured by Alsharqiyah Cables Company. Produced according to international standards to ensure quality and safety. PVC insulated (105°C), offering a cost-effective, reliable, and durable solution. The insulation forms excellent protection around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. It is designed for installation in wiring of switch, control, metering, relay and instrumentation panels of power switchgear, and for such purpose as internal connections in rectifier equipment and its motor starters/controllers. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Conductor: Flexible Copper (Class 5)
- Insulation Material: Heat Resistant PVC (105°C)
- Voltage: 600/1000 volts
- Conductor Size (Cross-Sectional Area): 120 mm
- Nominal Insulation Thickness: 1.60 mm
- Approx Diameter: 19 mm
- Weight: 1250 kg/km
- Maximum DC Resistance at 20°C: ≤0.161 ohm/km
- Standard Length: 1000 meter drum
- Insulation Color: Orange
- Reference Standards: BS 6231, BS EN 60228, BS EN 50363
