10mm Single Core Electrical Wire 600/1000 volts, Flexible Copper, PVC Insulation (70°C), Orange | Asharqiyah Cables
(770 Product Views)

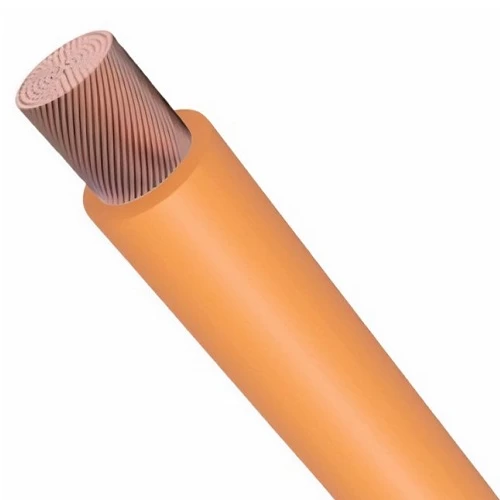

Single core electrical wire 10 mm2 600/1000 volts, flexible copper, orange color, manufactured by Asharqiyah Cables Company, it is designed for installation in wiring of switch, control, metering, relay and instrumentation panels of power switchgear.
Product description
Flexible copper electrical wire (CU/PVC), manufactured by Asharqiyah Cables Company. Produced according to international standards to ensure quality and safety. PVC insulated (70°C), offering a cost-effective, reliable, and durable solution. The insulation forms excellent protection around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. It is designed for installation in wiring of switch, control, metering, relay and instrumentation panels of power switchgear, and for such purpose as internal connections in rectifier equipment and its motor starters/controllers. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Conductor: Flexible Copper (Class 5)
- Insulation Material: PVC (70°C)
- Voltage: 600/1000 volts
- Conductor Size (Cross-Sectional Area): 10 mm2
- Nominal Insulation Thickness: 1 mm
- Approx Overall Diameter: 6.20 mm
- Weight: 119 kg/km
- Maximum DC Resistance at 20°C: ≤1.91 ohm/km
- Standard Length: 100 yards (91.4 meters)
- Insulation Color: Orange
- Reference Standards: BS 6231, BS EN 60228, BS EN 50363
