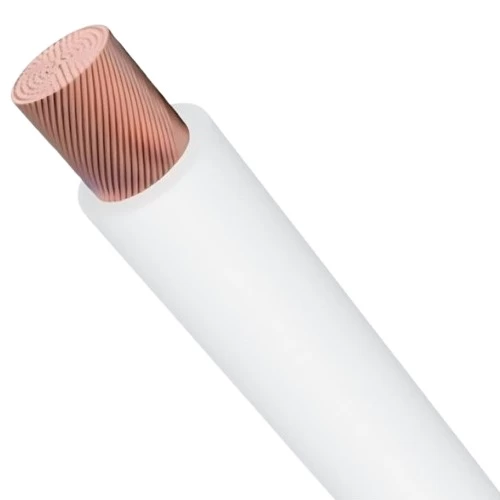

0.75mm Flexible Copper Wire 300/500V, PVC Insulation (70°C) white, 300ft Length | Asharqiyah Cables
(573 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Flexible copper wire (CU/PVC) is High-quality, size 0.75 mm², insulated PVC 70°, designed to work under voltage of 300/500 volts, coil length 91.4 meters, white color, produced by Asharqiyah Cables Company, guarantees reliable performance and high efficiency in electrical applications.
Product description
Flexible copper electrical wire (CU/PVC, manufactured by Asharqiyah Cables Company. Produced according to international standards to ensure quality and safety. PVC insulated (70°C), offering a cost-effective, reliable, and durable solution. The insulation forms excellent protection around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations in a conduits, ducts or trunks or similar closed systems. It can be used in/on lighting fittings, switch and control devices, control panels, inside appliances and similar applications. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Wire Type: (H05V-K)
- Conductor Size (Cross-Sectional Area): 0.75mm2
- Maximum DC Resistance at 20°C: ≤26.0 ohm/km
- Approx Overall Diameter: 2.30 mm
- Weight: 12 kg/km
- Insulation Color: white
- Conductor: Flexible Copper (Class 5)
- Insulation Material: PVC (70°C)
- Voltage: 300/500 volts
- Standard Length: 100 yards (91.4 meters)
- Nominal Insulation Thickness: 0.6 mm
- Standards: IEC 60227-3, BS EN 50525-2-31
