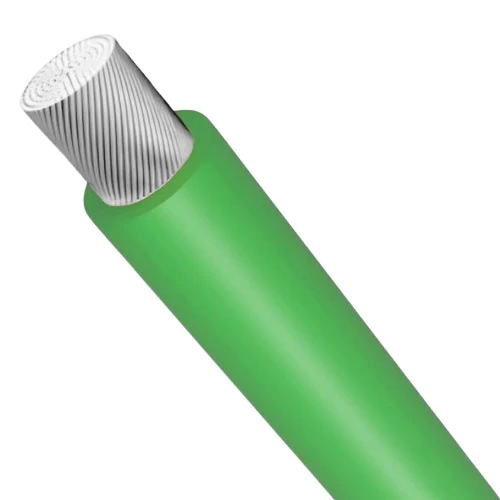

0.5 sq mm Flexible Tinned Copper Wire 600/1000V, Heat Resistant PVC Insulation (105°C), Green | Alsharqiyah Cables
(648 Product Views)
Flexible tinned copper electrical wire (CU/PVC), 0.5 mm2 cross section, 600/1000 Volts, color is green, produced in accordance with international quality and safety standards, manufactured by Alsharqiyah Cables Company.
Product description
Electrical wire (CU/PVC), manufactured by Alsharqiyah Cables Company. Produced according to international standards to ensure quality and safety. PVC insulated (105°C), offering a cost-effective, reliable, and durable solution. The insulation forms excellent protection around the conductor, preventing electric current leakage, and providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. It is designed for installation in wiring of switch, control, metering, relay and instrumentation panels of power switchgear, and for such purpose as internal connections in rectifier equipment and its motor starters/controllers. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Conductor: Flexible Tinned Copper (Class 5)
- Insulation Material: Heat Resistant PVC (105°C)
- Voltage: 600/1000 volts
- Conductor Size (Cross-Sectional Area): 0.5 mm
- Nominal Insulation Thickness: 0.8 mm
- Approx Diameter: 2.60 mm
- Weight: 12 kg/km
- Maximum DC Resistance at 20°C: ≤39.00 ohm/km
- Standard Length: 100 yards (91.4 meters)
- Insulation Color: Green
- Reference Standards: BS 6231, BS EN 60228, BS EN 50363
