Single Core Copper Cable 600/1000 V, PVC, Stranded, Size 10 mm2, Red Color | Riyadh Cables
(899 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

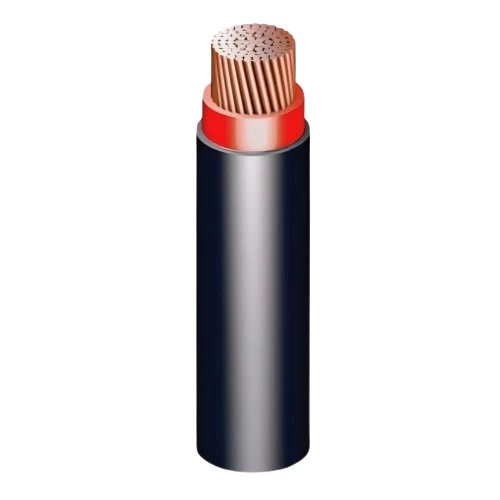

Stranded single core electrical copper cable PVC, red color, cross-sectional area 10 mm2, low voltage 600/1000V, Used in power plugs, and home appliances, Produced by Riyadh Cables Company
Product description
Stranded single core electrical copper cable, Produced by Riyadh Cables Company. Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications. Such as lighting equipment, central air conditioners, power plugs, and home appliances. Available in a variety of sizes and colors with highest quality and best prices.
- Insulation : PVC
- Outer jacket : PVC
- Voltage : 600/1000 volts
- Size (cross-sectional area) : 10 mm2
- Number of wires : 7
- Approx conductor diameter : 4.01 mm
- Thickness of first insulation layer : 1 mm
- Thickness of outer jacket layer : 1.4 mm
- Approx overall diameter : 9 mm
- Weight : 165 kg/km
- Length : 1000 meters
- Color : Red
- According to standard : IEC 60502-1
