Single Core Cable 120 mm 0.6/1kV, Stranded Copper, PVC Insulation, Black Color, 1000 M Length | RESCAB
(459 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

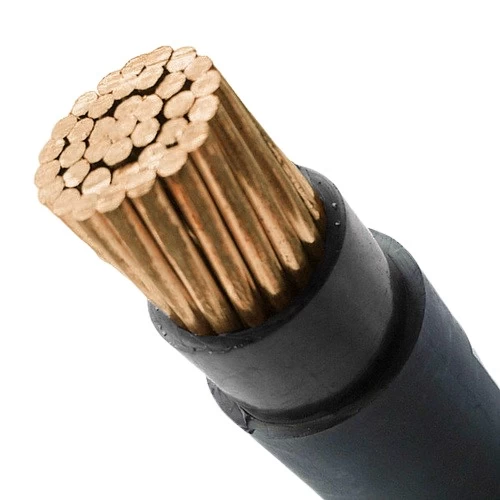

Unarmored stranded copper power cable (CU/PVC/PVC), single core,120mm2 size conductor, produced by Red Sea Cables (RESCAB) company, PVC (polyvinyl chloride) layer forms excellent insulation and It prevents harmful UV rays from damaging the cable where there is no risk of mechanical damage.
Product description
Unarmored stranded copper power cable (CU/PVC/PVC), Produced by Red Sea Cables (RESCAB) Company, PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 1
- Conductor Size (Cross-Sectional Area): 120 mm2
- Number of wires: 37
- Nominal Insulation Thickness: 1.6 mm
- Nominal Sheath Thickness: 1.5 mm
- Approx Overall Diameter: 20 mm
- Max DC Conductor Resistance at 20°C: 0.153 ohm/km
- Weight: 1335 kg/km
- Standard Length: 1000 meters
- Phase Core Color: Black
- Standard: IEC 60502-1
