PVC Copper Cable 600/1000 V, Single Core Stranded, Size 185 mm2, Red Color | Riyadh Cables
(1191 Product Views)

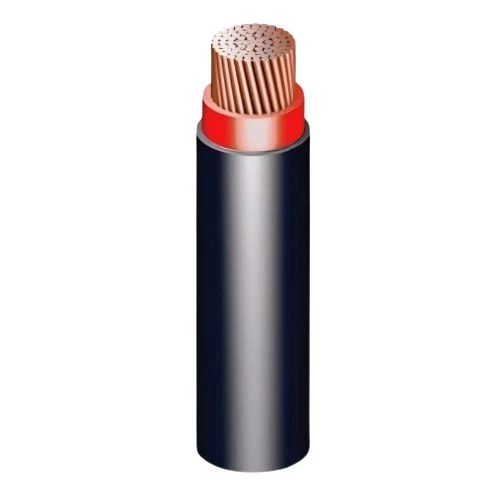

PVC copper electrical cable single core stranded, red color, cross-sectional area 185 mm2, Features two insulated layers that provides protection for the cable from corrosion and external factors, Produced by Riyadh Cables Company.
Product description
Stranded single core electrical copper cable, Produced by Riyadh Cables Company. Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications. Such as lighting equipment, central air conditioners, power plugs, and home appliances. Available in a variety of sizes and colors with highest quality and best prices.
- Insulation : PVC
- Outer jacket : PVC
- Voltage : 600/1000 volts
- Size (cross-sectional area) : 185 mm2
- Number of wires : 37
- Approx conductor diameter : 17.4 mm
- Thickness of first insulation layer : 2 mm
- Thickness of outer jacket layer : 1.7 mm
- Approx overall diameter : 25 mm
- Weight : 2000 kg/km
- Length : 1000 meters
- Color : Red
- According to standard : IEC 60502-1
