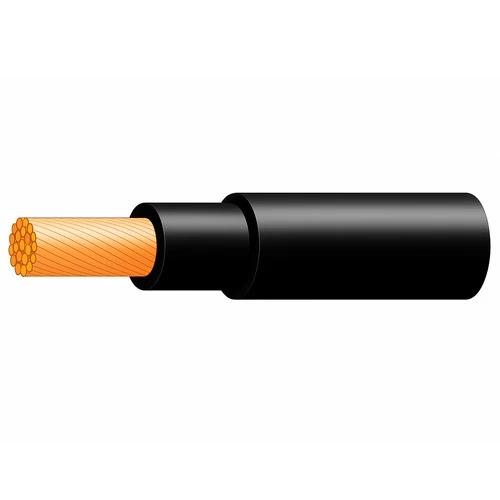

300 mm 0.6/1kV Single Core Electric Cable, Stranded Copper Wire, PVC 85°C Insulated and Sheathed, Black Color, 500 m | SCC

Unarmored stranded copper power cable (CU/PVC/PVC), produced by Saudi Cables Company (SCC). PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.

• Conductor: Stranded Copper
• Insulation Material: PVC type 5 to BS6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size: 300 mm²
• Number of wires: 34
• Nominal Insulation Thickness: 2.4 mm
• Nominal Sheath Thickness: 1.9 mm
• Approx Overall Diameter: 30.6 mm
• Weight: 3300 kg/km
• Standard Length: 500 meters
• Insulation Color: Black
• Sheath Color: Black
• Standard: IEC: 502
• Catalogue Number: EJB1-26A
