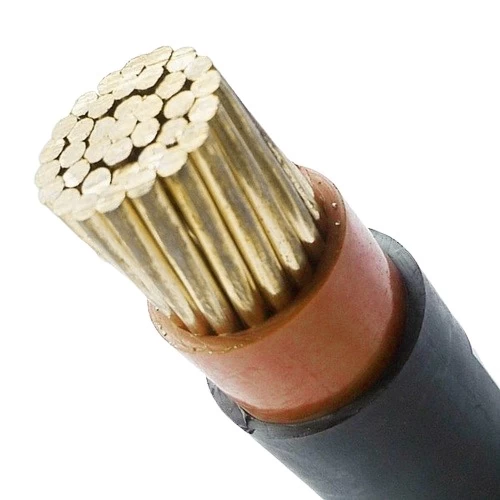

2.5 sq mm 0.6/1kV, Single Core Electric Cable, Stranded Copper Wire, PVC Insulated, Brown Color, 2000 meter | RESCAB

Single core stranded copper cable (CU/PVC/PVC), produced by Red Sea Cables (RESCAB) Company according to British standard (BS 5467). PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 1
• Conductor Size (Cross-Sectional Area): 2.5 mm2
• Number of wires: 7
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 7 mm
• Max DC Conductor Resistance at 20°C: 7.41 ohm/km
• Weight: 75 kg/km
• Standard Length: 2000 meters
• Phase Core Color: Brown
• Standard: BS 5467, 6346 Latest
