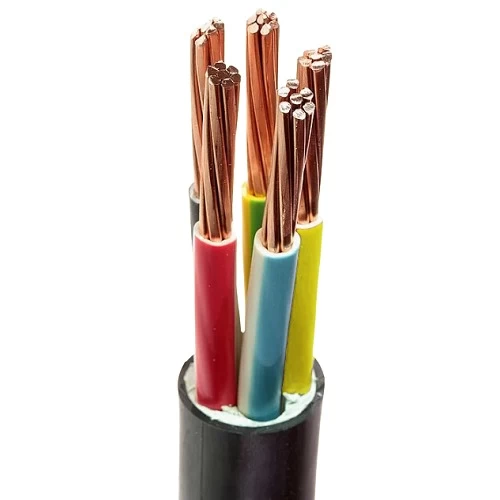

4mm 5 Core Electrical Cable 300/500V, Stranded Copper Conductor, PVC Insulation and Sheath | Nohascom

Stranded copper electrical cable (CU/PVC/PVC), Produced by Nohascom Factory. Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. Suitable for industrial and residential wiring applications. Usable in open environments both indoors and outdoors, as well as for powering electrical units and equipment in various projects. Available in a variety of sizes and colors with highest quality and best prices.

• Conductor: Copper
• Conductor Shape: Stranded
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 5
• Conductor Size (Cross-Sectional Area): 4 mm2
• Number of Wires: 7
• Wire Diameter: 0.85 mm
• Nominal Insulation Thickness: 0.8
• Thickness of Inner Covering: 0.6 mm
• Nominal Sheath Thickness: 1.4 mm
• Overall Diameter: 14.2 mm
• Weight: 410 kg/k
• Insulation Color: (Red, Yellow, Blue, Black, Yellow/Green)
• Standard: SASO IEC 60227-4
