Stranded Copper Electrical Cable 4 Core with Reduced Neutral 4×16+10 sq mm, 0.6/1kV, PVC 70°C Insulation, Black Color,500 meter | SCC
(522 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

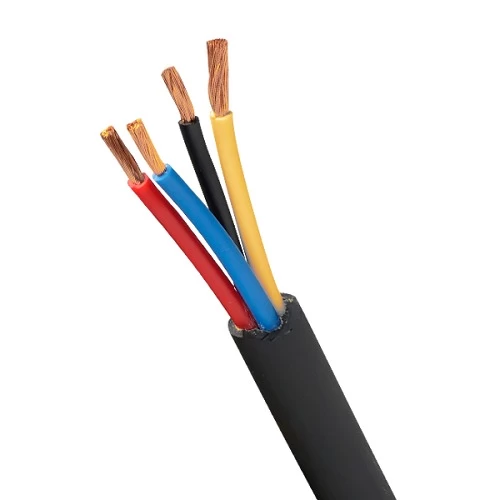

Unarmored stranded copper power cable (CU/PVC/PVC), 4 cores plus neutral, size 4×16+10 mm², low voltage 0.6/1 kV, Produced by Saudi Cables Company (SCC), made from pure copper conductors with multi-layer insulation enhancing corrosion resistance and providing high electrical safety suitable for various industrial and commercial environments.
Product description
Unarmored stranded copper power cable (CU/PVC/PVC), produced by Saudi Cables Company (SCC). PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability. As the PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC type 1 to BS6746 rated 70°C
- Outer Sheath: PVC type ST2 to IEC 502
- Voltage: 0.6/1kV
- Number of Cores: 4 Core + Neutral Line
- Conductor Size (Cross-Sectional Area): ( 4cx16 mm2 ) + 10 mm2
- Number of Phase Wires: 6
- Number of Neutral Wires: 7
- Nominal Insulation Thickness of Phase: 1 mm
- Nominal Insulation Thickness of Neutral: 1 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 22.0 mm
- Weight: 995 kg/km
- Length: 500 meters
- Phase Core Colors: (Red, Yellow, Blue, Black, Green/Yellow)
- Sheath Color: Black
- Standard: IEC: 502
- Catalogue Number: EJHB-53A
