4 Core Cable 10 sq mm Size Conductor, 300/500V, Stranded Copper PVC Insulated and Sheathed | Riyadh Cables
(1397 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

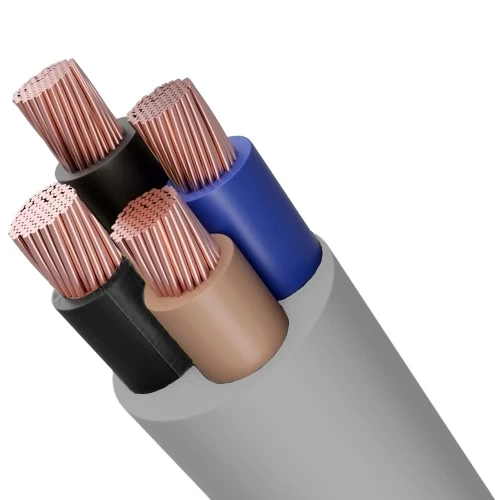

4 core stranded electrical copper cable (CU/PVC/PVC), 10 mm2 cross-sectional area, 300/500V, It is used to conduct electrical current in various domestic, commercial and industrial applications, insulation color is black, blue, brown and black, produced by Riyadh Cables Company.
Product description
Electrical cable (CU/PVC/PVC), produced by Riyadh Cables Company, according to international standards, ensuring its quality and performance Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications. Available in a variety of sizes and colors with highest quality and best prices.
- Conductor: Copper
- Conductor Shape: Stranded
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 300/500 volts
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 10 mm
- Number of Wires: 7
- Approx Conductor Diameter: 4.05 mm
- Insulation Thickness: 1
- Sheath Thickness: 1.4 mm
- Overall Diameter: 20.5 mm
- Weight: 700 kg/km
- Max DC Conductor Resistance at 20°C: 1.83 ohm/km
- Standard Packing Length: 1000/2000 meter
- Insulation Color: (Black, Blue, Brown, Black)
- Outer Sheath Color: Gray
- Standards: SSA 1450, IEC 60227 (IEC 10)
