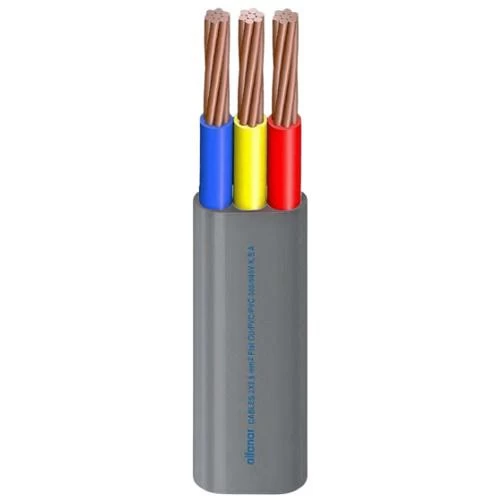

Three Core Stranded Copper Flat Cable, 6mm Cross Section, 300/500 volts, PVC Insulated and Sheathed | Alfanar
(1198 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Stranded copper flat cable, 6 mm2 cross section three core, 300/500 volts, PVC insulated and sheathed, insulation color (red, yellow, blue), its flat design saves space when mounted on walls or outdoor electronic signboards, from Alfanar Company.
Product description
Stranded electrical copper flat cable (CU/PVC/PVC), Produced by Alfanar Company according to the British standard, which ensures its quality and performance. Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. Versatile cable for powering fixed electrical equipment and appliances in various buildings. Its flat design saves space when mounted on walls or outdoor electronic signboards. Available in a variety of sizes and colors with highest quality and best prices.
- Conductor: Copper
- Conductor Shape: Plain annealed stranded copper conductor class 2 as per BS EN 60228
- Insulation Material: PVC (Polyvinyl Chloride) 70 ยฐC
- Outer Sheath: PVC
- Voltage: 300/500 volts
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 6 mm2
- Number of Wires: 7
- Wire Diameter: 1.04 mm
- Nominal Insulation Thickness: 0.8 mm
- Thickness of Inner Covering: 1.1 mm
- Approx. Overall Diameter: 6.9 ร 16.4 mm
- Weight: 305 kg/km
- Standard Length: 100, 80, 50, 40 yard coil (other lengths available upon request)
- Insulation Color: (Red, Yellow, Blue)
- Standard: BS 6004
