Three Core 16mm Stranded Copper Cable 300/500V, PVC 70°C Insulation, Black Color, 2000 meter Length | Saudi Cable Company
(411 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

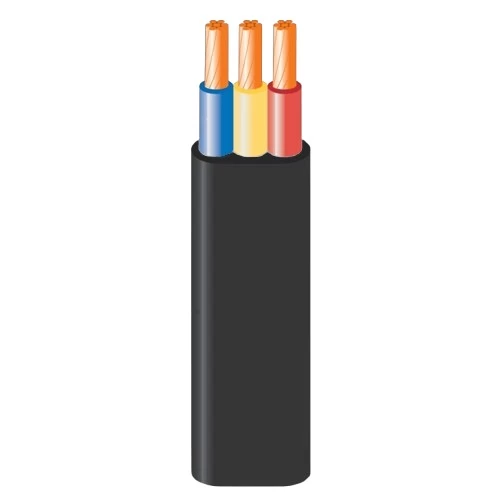

Stranded copper electrical flat cable (CU/PVC/PVC), three core, 16mm² cross-sectional area, insulated with materials that withstand temperatures up to 70°C. The black jacket provides protection against environmental impacts and is ideal for outdoor applications. Produced by Saudi Cable Company.
Product description
Stranded copper electrical flat cable (CU/PVC/PVC), low voltage 300/500V. Produced by Saudi Cable Company (SCC). Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. These cables are suitable for operation at voltages up to and including 300 Vrms to earth and 500 Vrms between conductors. Typical applications include indoor and outdoor wiring of residential and commercial buildings, warehouses and shops. Available in a variety of sizes and colors with highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 70°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 16mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.3 mm
- Overall Diameter: 26.5x11.0 mm
- Weight: 672 kg/km
- Length: 2000 meter / Coil
- Insulation Color: (Red, Yellow, Blue)
- Sheath Color: Black
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CBF3-09H
