Stranded Copper Cable 3x240+120mm 600/1000V, PVC Insulated | Riyadh Cables
(1028 Product Views)

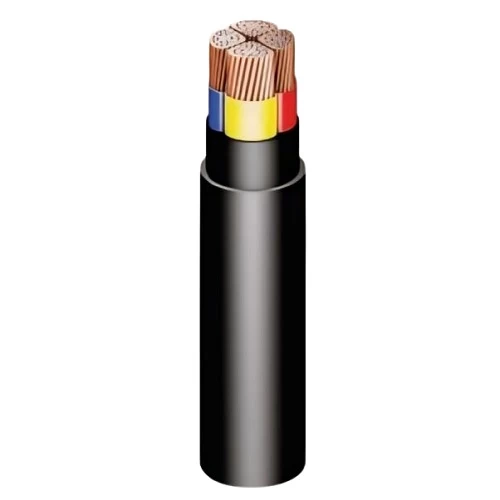

Stranded copper power cable (CU/PVC/PVC) 3 phase + neutral line, Number of Phase Wires 34, available in a variety of sizes and colors with the highest quality and best prices, Size 3×240+120 mm2, produced by Riyadh Cables Company.
Product description
Stranded copper power cable (CU/PVC/PVC) 3 phase + neutral line, Produced by Riyadh Cables Company. according to IEC 60502-1 (International Electrotechnical Commission) standard. Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The sheath also provides protection for the cable from corrosion, external factors, heat and moisture damage. It is used to conduct electrical current in various domestic, commercial and industrial applications. Such as lighting equipment, central air conditioners, power plugs, and home appliances. Available in a variety of sizes and colors with highest quality and best prices.
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer jacket : PVC
- Voltage : 600/1000 volts
- Phase Conductor Shape: Sectoral Stranded (sm)
- Neutral Conductor Shape: Sectoral Stranded (sm)
- Number of Cores: 3 Core + Neutral Line
- Conductor Size (Cross-Sectional Area): ( 3cx240 mm2 ) + 120mm2
- Number of Phase Wires: 34
- Number of Neutral Wires: 37
- Approx Diameter of Neutral Conductor: 14 mm
- Nominal Insulation Thickness of Phase: 2.2 mm
- Nominal Insulation Thickness of Neutral: 1.6 mm
- Nominal Sheath Thickness: 2.8 mm
- Approx Overall Diameter: 58 mm
- Weight: 9575 kg/km
- Length : 250 meters
- Phase Core Colors: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
