6 mm 3 Core Stranded Copper Cable 600/1000 V, PVC Insulated, (Red, Yellow, Blue) | Riyadh Cables

6 mm 3 Core Stranded Copper Cable 600/1000 V, PVC Insulated, (Red, Yellow, Blue) | Riyadh Cables

(2320 Product Views)

YouMats

3 core electrical stranded copper cable (CU/PVC/PVC), approx conductor diameter 3.12 mm, It is used in central air conditioners, power plugs, and home appliances, 3×6 mm2, (red, yellow, blue) color, Produced by Riyadh Cables Company.




in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

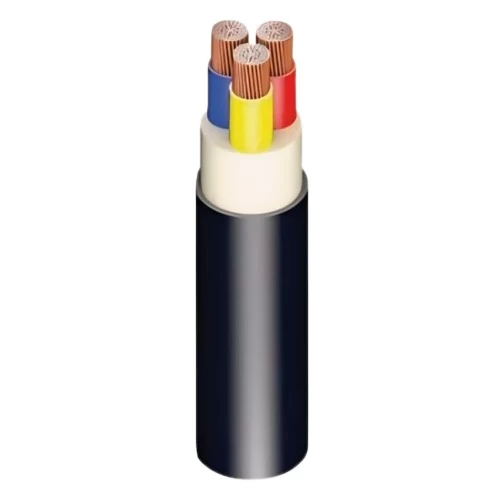

3 core electrical stranded copper cable (CU/PVC/PVC). Produced by Riyadh Cables Company. Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The sheath also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications. Such as lighting equipment, central air conditioners, power plugs, and home appliances. Available in a variety of sizes and colors with highest quality and best prices.

  • Insulation: PVC
  • Sheath: PVC
  • Voltage: 600/1000 volts
  • Wire type: round stranded
  • Number of Cores: 3
  • Size (cross-sectional area): 6 mm2
  • Number of wires: 7
  • Approx conductor diameter: 3.12 mm
  • Thickness of insulation layer: 1 mm
  • Thickness of Sheath: 1.8 mm
  • Approx overall diameter: 18 mm
  • Weight: 475 kg/km
  • Length: 1000 meters
  • Color: (red, yellow, blue)
  • Conformity according to international standard: IEC 60502-1
