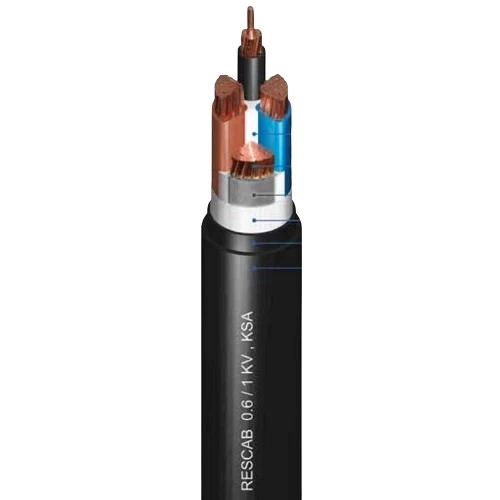

3x95 + 50mm 0.6/1kV, 3.5C Electric Cable, Stranded Copper Conductor, PVC Insulated, 500 meter Length | RESCAB
(885 Product Views)
Unarmored stranded copper electric cable (CU/PVC/PVC), 3 core + neutral line, 3x95 + 50mm2 size wire, 0.6/1kV, produced by Red Sea Cables (RESCAB) Company, the outer sheath provides additional protection for the cable, and it prevents harmful UV rays from damaging the cable.
Product description
Unarmored stranded copper power cable (CU/PVC/PVC), produced by Red Sea Cables (RESCAB) Company according to British standard (BS 5467). PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3.5 Core (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 3cx95 mm2 ) + 50mm2
- Number of Phase Wires: 19
- Number of Neutral Wires: 7
- Nominal Insulation Thickness of Phase: 1.6 mm
- Nominal Insulation Thickness of Neutral: 1.4 mm
- Nominal Sheath Thickness: 2.2 mm
- Approx Overall Diameter: 40 mm
- Max DC Conductor Resistance at 20°C (Ph): 0.193 ohm/km
- Max DC Conductor Resistance at 20°C (Ne): 0.387 ohm/km
- Weight: 4060 kg/km
- Standard Length : 500 meters
- Phase Core Colors: (Blue, Brown, Black, Grey)
- Standard: BS 5467, 6346
