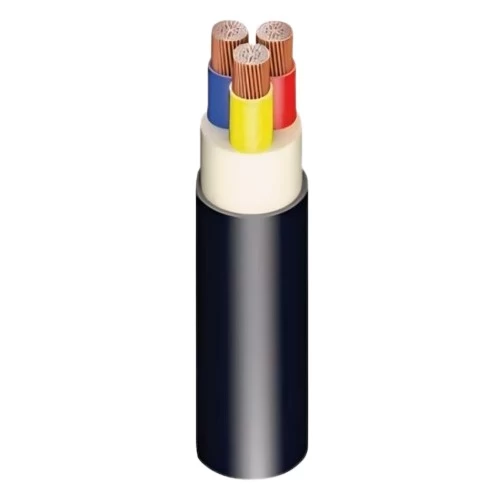

35 mm 3 Core Stranded Copper Cable 600/1000 V, PVC Insulated, (Red, Yellow, Blue) | Riyadh Cables
(2819 Product Views)
Get PVC copper electrical cable 3 core stranded, number of wires 7, It is used to conduct electrical current in various domestic, commercial and industrial applications, (red, yellow, blue) color, 3×35 mm2, Produced by Riyadh Cables Company.
Product description
3 core electrical stranded copper cable (CU/PVC/PVC). Produced by Riyadh Cables Company. Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The sheath also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications. Such as lighting equipment, central air conditioners, power plugs, and home appliances. Available in a variety of sizes and colors with highest quality and best prices.
- Insulation: PVC
- Sheath: PVC
- Voltage: 600/1000 volts
- Wire type: round stranded
- Number of Cores: 3
- Size (cross-sectional area): 35 mm2
- Number of wires: 7
- Approx conductor diameter: 7.44 mm
- Thickness of insulation layer: 1.2 mm
- Thickness of Sheath: 1.8 mm
- Approx overall diameter: 28 mm
- Weight: 1500 kg/km
- Length: 1000 meters
- Color: (red, yellow, blue)
- Conformity according to international standard: IEC 60502-1
