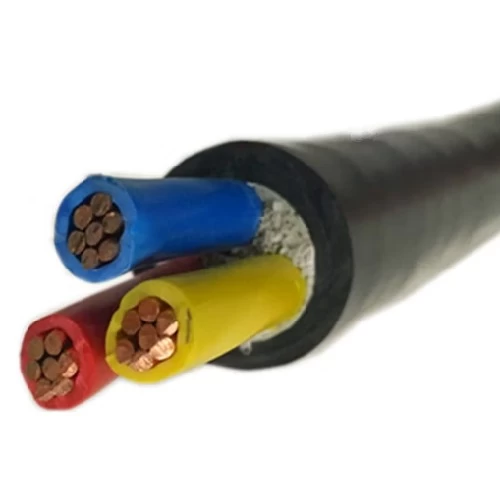

300 sq mm Three Core Power Cable 0.6/1kV CU/PVC/PVC, Stranded Copper, 250 M Length | BAHRA
(917 Product Views)
Power Cable 300 sq mm 3 Phase 0.6/1kV CU/PVC/PVC, Stranded Copper, 250 M Length, It comes in a variety of colors and sizes, at the best prices and highest quality, produced by BAHRA Cables Company.
Product description
Stranded copper power cable, Produced by BAHRA Cables Company according to the International Electrotechnical Commission standard (IEC 60502-1). PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As the PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications where there is no risk of mechanical damage. Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3 Core
- Conductor Size (Cross-Sectional Area): 300 mm2
- Number of Wires: 61
- Nominal Insulation Thickness: 2.4 mm
- Nominal Sheath Thickness: 2.9 mm
- Approx Overall Diameter: 65.8 mm
- Weight: 10011 kg/km
- Standard Length: 250 meters
- Phase Core Colors: Red, Yellow, Blue
- Standard: IEC 60502-1
