16mm Three Core Flat Electrical Cable, 300/500V, Stranded Copper PVC Insulation and Sheath | Riyadh Cables
(1509 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

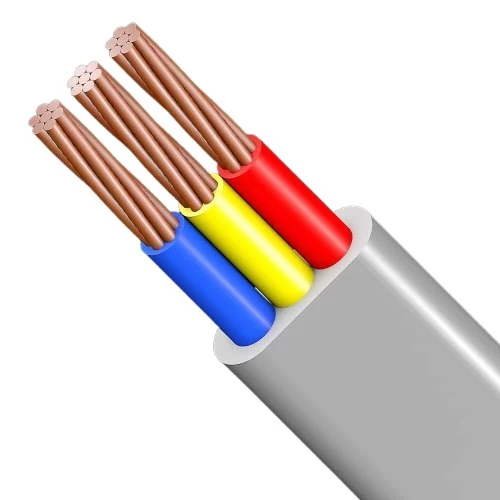

3 core stranded copper cable, 16 mm size conductor, 300/500 volts, PVC sheathed, insulation color is red, yellow and blue, produced by Riyadh Cables Company, according to the British standard BS 6004, which ensures its quality and performance, PVC insulated.
Product description
Electrical flat cable (CU/PVC/PVC), manufactured by Riyadh Cables Company. Produced in accordance with British Standard BS 6004 to ensure the highest quality and performance. Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. Used to supply power for various domestic and industrial electrical applications. Its flat shape makes it ideal for installation in tight spaces, occupying less space when installed on exterior or interior walls of buildings. Available in a variety of sizes and colors with highest quality and best prices.
- Conductor: Copper
- Conductor Shape: Stranded as per BS EN 60228
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 300/500 volts
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 16 mm
- Number of Wires: 7
- Insulation Thickness: 1 mm
- Sheath Thickness: 1.3 mm
- Overall Diameter or Dimensions: Lower Limit 9 x 22 mm / Upper Limit 11 x 26.5 mm
- Max DC Conductor Resistance at 20°C: 1.15 ohm/km
- Weight: 690 kg/km
- Insulation Color: (Red, Yellow, Blue)
- Sheath Color: Gray
- Standard: BS 6004
