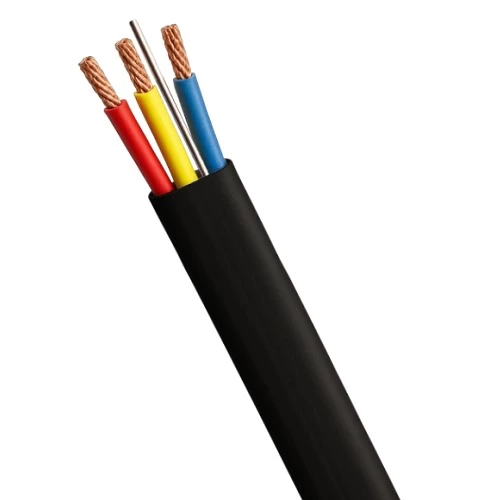

10mm Three Core and Earth Flat Cable, Stranded Copper Conductor, 300/500V, PVC 85°C Insulation, Black Color, 2000 M | Saudi Cable Company

Stranded copper electrical flat cable with earth conductor (CU/PVC/PVC). Produced by Saudi Cable Company (SCC). Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. These cables are suitable for operation at voltages up to and including 300 Vrms to earth and 500 Vrms between conductors. Typical applications include indoor and outdoor wiring of residential and commercial buildings, warehouses and shops. Available in a variety of sizes and colors with highest quality and best prices.

• Conductor: Stranded Copper
• Insulation Material: PVC type 5 to BS:6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 10mm2
• Number of Wires: 7
• Earth Continuity Conductor (no.xmm): 7x0.84mm
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.2 mm
• Overall Diameter: 25.5x9.6 mm
• Weight: 522 kg/km
• Length: 2000 meter / Coil
• Insulation Color: (Red, Yellow, Blue)
• Sheath Color: Black
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: CGG3-08H
