Jeddah Cable 25 mm 2 Core, Stranded Copper Conductor, 0.6/1kV, PVC Insulated
(1041 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

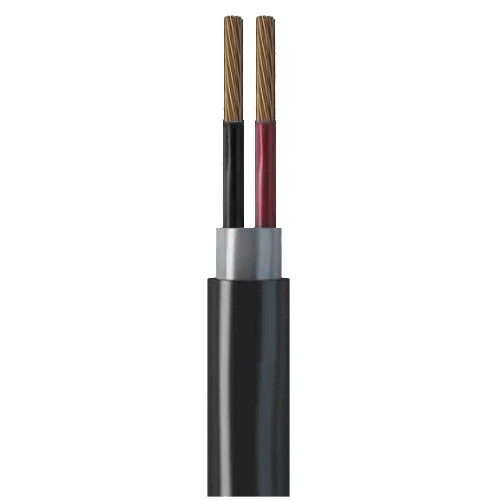

Two core stranded copper cable (CU/PVC/PVC), Weight 995 kg/km, characterized by its economical cost, reliable performance and durability, according to the International Electrotechnical Commission (IEC 60502-1) standard, produced by Jeddah Company, size 25 mm2.
Product description
Two core stranded copper cable (CU/PVC/PVC), Produced by Jeddah Company, according to the International Electrotechnical Commission standard (IEC 60502-1). PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor Type: Copper
- Insulation Material: PVC Compound (Polyvinyl Chloride)
- Bedding: PVC Compound (or LSHF or PE)
- Jacketing: PVC Compound (or LSHF or PE)
- Voltage: 600/1000 volts
- Conductor Shape: Round Stranded (rm)
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 25 mm2
- Nominal Insulation Thickness: 1.2 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 23.12 mm
- Weight: 995 kg/km
- Max DC Conductor Resistance at 20°C: 0.727 ohm/km
- Current Rating Laid in Ground: 150 Ampere
- Current Rating Laid in Ducts: 119 Ampere
- Current Rating Laid in Free Air: 147 Ampere
- Phase Core Colors: (Red, Black)
- Standard: IEC 60502-1
