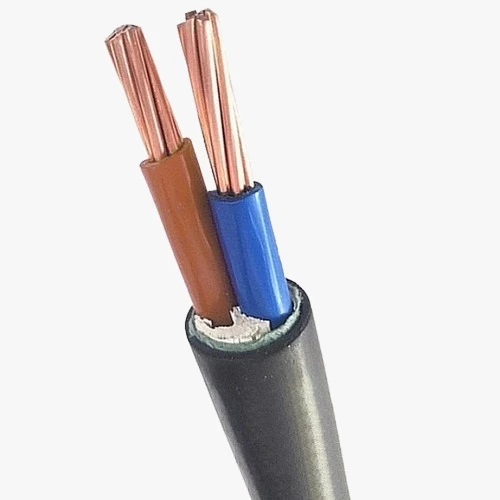

CU/PVC/PVC 4 mm 2 Core Power Cable, Stranded Copper Wire, 0.6/1 kV, 1000 meter Length | BAHRA
(764 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Power Cable CU/PVC/PVC 4 mm Two Core, PVC cables are ideal options for electrical power delivery, with economical cost and reliable performance. Produced by BAHRA Cables Company.
Product description
Stranded copper power cable, Produced by BAHRA Cables Company according to the International Electrotechnical Commission standard (IEC 60502-1). PVC cables are a widely used and effective choice for power transmission in various applications. They are distinguished by their economical cost, reliable performance, and durability, As the PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the cable and is highly resistant to water and moisture. This makes it suitable for indoor and outdoor.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 2 Core
- Conductor Size (Cross-Sectional Area): 4 mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 13.9 mm
- Weight: 306 kg/km
- Standard Length: 1000 meters
- Phase Core Colors: Brown and Blue
- Standard: BS 5467
