1.5mm 2 Core Cable 300/500V, Stranded Copper Conductor, PVC Insulated and Sheathed | Alfanar
(758 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

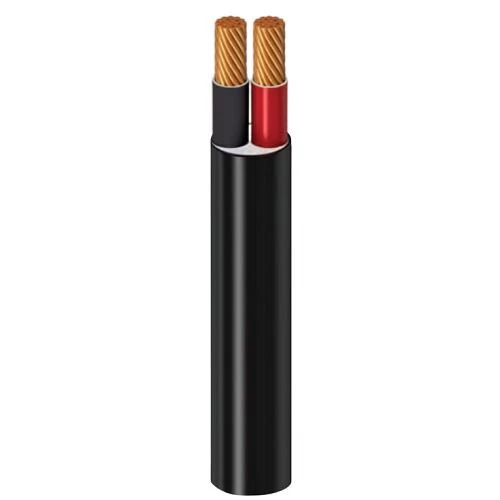

Stranded electrical copper cable 2 core (CU/PVC/PVC), 1.5 mm2 cross-sectional area, low voltage 300/500V, insulated and sheathed with PVC compound (polyvinyl chloride), insulation color (red, black), produced by Alfanar Company.
Product description
Stranded electrical copper cable (CU/PVC/PVC), Produced by Alfanar Company according to the international standard, which ensures its quality and performance. Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. Suitable for industrial and residential wiring applications. Usable in open environments both indoors and outdoors, as well as for powering electrical units and equipment in various projects. Available in a variety of sizes and colors with highest quality and best prices.
- Conductor: Copper
- Conductor Shape: Plain annealed stranded copper conductor class 2 as per IEC 60228
- Insulation Material: PVC (Polyvinyl Chloride) 70 °C
- Outer Sheath: PVC
- Voltage: 300/500 volts
- Cable Type: (H05VV-R)
- Number of Cores: 2
- Conductor Size (Cross-Sectional Area): 1.5 mm2
- Number of Wires: 7
- Wire Diameter: 0.52 mm
- Nominal Insulation Thickness: 0.7 mm
- Thickness of Inner Covering: 0.4 mm
- Nominal Sheath Thickness: 1.2 mm
- Overall Diameter: 9.2 mm
- Weight: 125 kg/km
- Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
- Insulation Color: (Red, Black)
- Standard: IEC 60227-4
