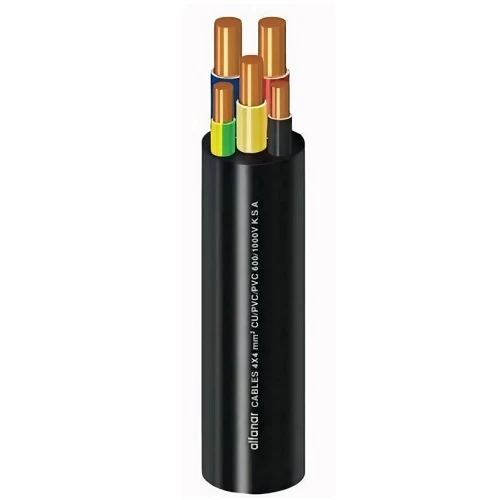

4mm2 5 Core Electric Cable 600/1000 Rated Voltage, Solid Copper, PVC Insulated and Sheathed | Alfanar

Solid electrical copper cable (CU/PVC/PVC), Produced by Alfanar Company according to the international standard, which ensures its quality and performance. Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. Suitable for domestic and light industrial electrical installations. It should be installed in areas where there is low risk of mechanical damage. It is also used for transferring electrical signals between different control units and also used in alarm systems. Available in a variety of sizes and colors with highest quality and best prices.

• Conductor: Copper
• Conductor Shape: Plain annealed solid copper conductor class 1 as per IEC 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 600/1000 volts
• Number of Cores: 5
• Conductor Size (Cross-Sectional Area): 4 mm2
• Number of Wires: 1
• Wire Diameter: 2.25 mm
• Nominal Insulation Thickness: 1 mm
• Nominal Sheath Thickness: 1.8 mm
• Overall Diameter: 15.1 mm
• Weight: 465 kg/km
• Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
• Insulation Color: (Red, Yellow, Blue, Black, Yellow/Green)
• Standard: IEC 60502-1
