Solid Copper Power Cable Four Core 2.5mm 0.6/1kV, PVC Insulated | Riyadh Cables
(962 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

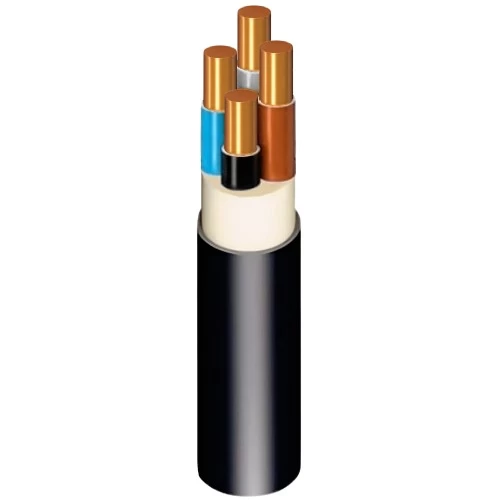

4 core electrical cable (CU/PVC/PVC), solid copper conductor, The thickness of the insulation layer is 0.8 mm, it is used to conduct electrical current in various domestic, commercial and industrial applications, produced by Riyadh Cables Company, Size 2.5 mm2.
Product description
4 core electrical cable (CU/PVC/PVC), solid copper conductor, Produced by Riyadh Cables Company. according to (International Electrotechnical Commission) standard. Insulated with two layers of high-quality PVC (polyvinyl chloride) material, the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. It is used to conduct electrical current in various domestic, commercial and industrial applications. Such as lighting equipment, central air conditioners, power plugs, and home appliances. Available in a variety of sizes and colors with highest quality and best prices.
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage : 600/1000 volts
- Conductor Shape: Solid (re)
- Number of Cores: 4 Core
- Conductor Size (Cross-Sectional Area): 2.5 mm2
- Number of Wires: 1
- Approx Conductor Diameter: 1.78 mm
- Nominal Insulation Thickness: 0.8 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 15 mm
- Weight: 325 kg/km
- Length : 1000 meters
- Phase Core Colors: (blue, brown, black, grey)
- Standard: IEC 60502-1
