4 Core 10mm Electric Cable 300/500V, Solid Copper Conductor, PVC 85°C Insulation, Gray Sheath, 1000 M/Drum | SCC
(590 Product Views)

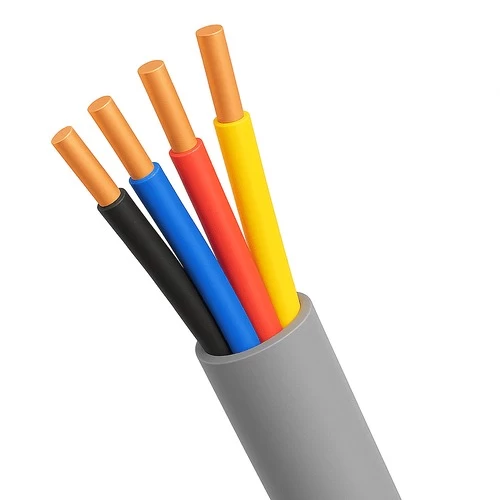

Solid copper 4 core electric cable (CU/PVC/PVC), 10 sq mm cross section, low voltage 300/500V, PVC 85°C insulation with gray sheath, 1000 meters. Ideal design for industrial and residential wiring. Manufactured by Saudi Cable Company.
Product description
Solid copper electrical cable (CU/PVC/PVC). Produced by Saudi Cable Company (SCC). Insulated and sheathed with PVC compound (polyvinyl chloride), the first layer provides excellent electrical insulation. The outer jacket also provides protection for the cable from corrosion and external factors. Suitable for industrial and residential wiring applications, fixed wiring, concealed in conduits or exposed on insulators, and in switching panels and distribution boards. These cables may be used in wet or dry locations and in outdoor applications. Available in a variety of sizes and colors with highest quality and best prices.
- Conductor: Solid Copper
- Insulation Material: PVC type 5 to BS:6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 10mm2
- Number of Wires: 1
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.4 mm
- Overall Diameter: 18.0 mm
- Weight: 638 kg/km
- Length: 1000 meter / Coil
- Insulation Color: (Red, Yellow, Blue, Black)
- Sheath Color: Grey
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: AGH4-08H
